Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

  1. Using a diagnostic scan tool, begin the PMI process for the HVAC control module following the onscreen instructions.

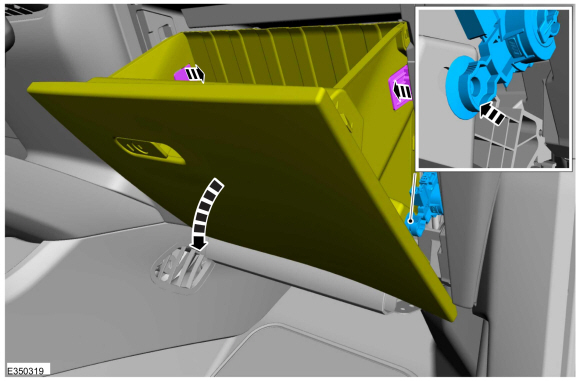

  1. Fully lower the glove compartment.
    • Release the tabs.
    • Disconnect the dampener strap.

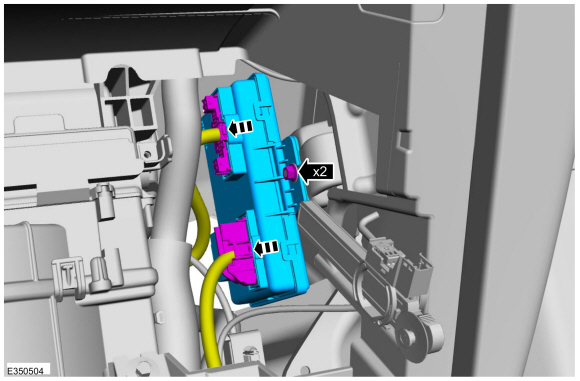

  1. Remove the nuts and the HVAC module.
    • Disconnect the electrical connectors

Installation

  1. To install, reverse the removal procedure.
  1. NOTE: This step is only necessary when installing a new component.

    Using a diagnostic scan tool, complete the PMI process for the HVAC control module following the on-screen instructions.
