Lincoln Nautilus: Climate Control System - General Information / Evaporator. Removal and Installation

Removal

1. Remove the climate control housing.
   Refer to: Climate Control Housing (412-00 Climate Control System - General Information) .


1. Remove the heater tube dash panel seal.

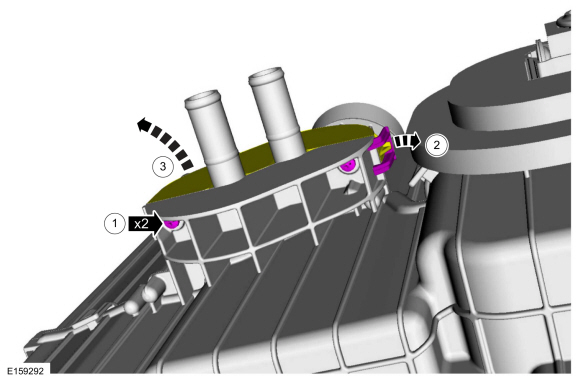

1. Remove the retainers, release the clip and position the heater tube bracket aside.


1. Remove the heater core.


1. Remove the retainers and the blower motor speed control.


1. Remove the air inlet cover housing retainers.


1. Remove the air inlet cover housing retainers.


1. Remove the air inlet cover housing retainers.


1. Unclip the air distribution housing.


1. 1. Detach the evaporator temperature sensor.

   2. Remove the air distribution housing.


1. Remove the evaporator dash panel seal.


1. Remove the retainer and unclip the air inlet cover housing.


1. Unclip and separate the air inlet cover housing.


1. 1. Remove the evaporator temperature sensor.

   2. Remove the evaporator.


Installation

1. To install, reverse the removal procedure.
