Lincoln Nautilus: Climate Control System - General Information / Driver Temperature Door Actuator. Removal and Installation
Removal
-
Remove the brake pedal and bracket assembly.
Refer to: Brake Pedal and Bracket (206-06 Hydraulic Brake Actuation, Removal and Installation).
-

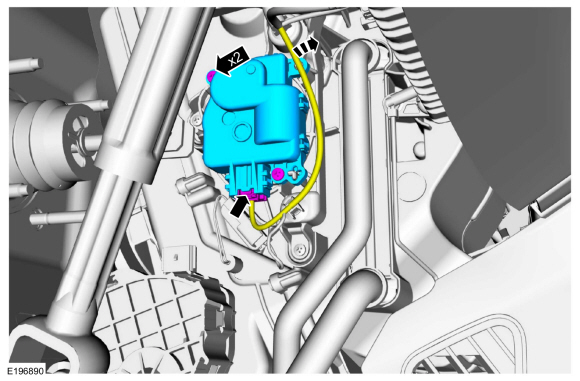

Disconnect the electrical connector, remove the
retainers. Position aside the wire harness and remove the driver side
temperature door actuator.
Installation
-
To install, reverse the removal procedure.
Removal
Remove the instrument panel.
Refer to: Instrument Panel (501-12 Instrument Panel and Console, Removal and Installation).
Disconnect the electrical connector...
Removal
Remove the climate control housing.
Refer to: Climate Control Housing (412-00 Climate Control System - General Information)
.
Remove the heater tube dash panel seal...
