Lincoln Nautilus: Climate Control System - General Information / In-Vehicle Temperature and Humidity Sensor. Removal and Installation

Lincoln Nautilus 2018-2023 Service Manual / Electrical / Climate Control System / Climate Control System - General Information / In-Vehicle Temperature and Humidity Sensor. Removal and Installation

Removal

  1. NOTE: Interior rear view mirror shown removed for clarity.

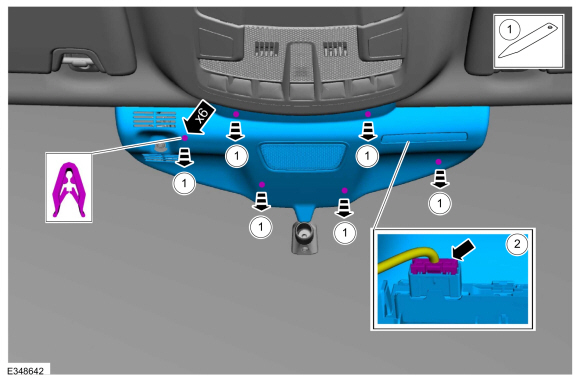

    Remove the IPMA cover.
    1. Release the IPMA cover clips.
    1. Disconnect the electrical connector(s).

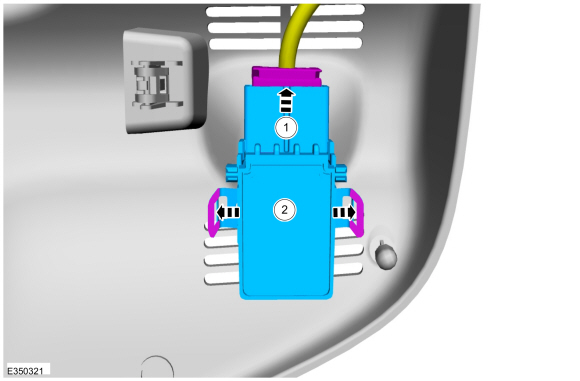

    • Disconnect the electrical connector.
    • Remove the in-vehicle temperature and humidity sensor.

Installation

  1. To install, reverse the removal procedure.
