Lincoln Nautilus: Climate Control System - General Information / Air Distribution Door Actuator. Removal and Installation
Removal
-
Refer to: Passenger Knee Airbag (501-20B Supplemental Restraint System, Removal and Installation).
-

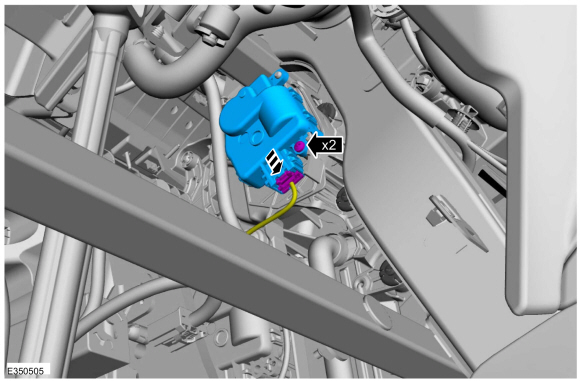

Remove the screws and the air distribution door actuator.
-
Disconnect the electrical connector.
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
3.7L engine shown, all others are similar.
NOTE:
Removal steps in this procedure may contain installation details.
Disconnect the electrical connector and remove the A/C pressure transducer...
Removal
Remove the instrument panel.
Refer to: Instrument Panel (501-12)
.
Disconnect the electrical connector, remove the retainers and the air inlet door actuator...
Other information:
Adjustment
NOTE:
Typical D-ring shown, others similar.
If required, remove the necessary trim panel(s).
Fold the seatbelt as indicated.
Feed the folded portion of the seatbelt into the D-ring.
Pull the seatbelt through the D-ring to remove the twist in the seatbelt...
