Lincoln Nautilus: Climate Control System - General Information / Air Inlet Door Actuator. Removal and Installation

Lincoln Nautilus 2018-2025 Service Manual / Electrical / Climate Control System / Climate Control System - General Information / Air Inlet Door Actuator. Removal and Installation

Removal

Remove the instrument panel.
Refer to: Instrument Panel (501-12) .

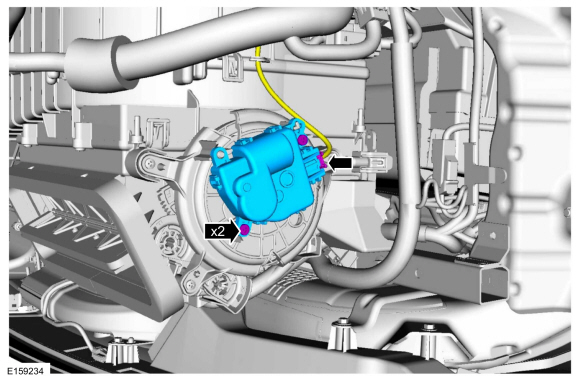

Disconnect the electrical connector, remove the retainers and the air inlet door actuator.

Installation

To install, reverse the removal procedure.
