Lincoln Nautilus: Climate Control System - General Information / Cabin Air Filter. Removal and Installation

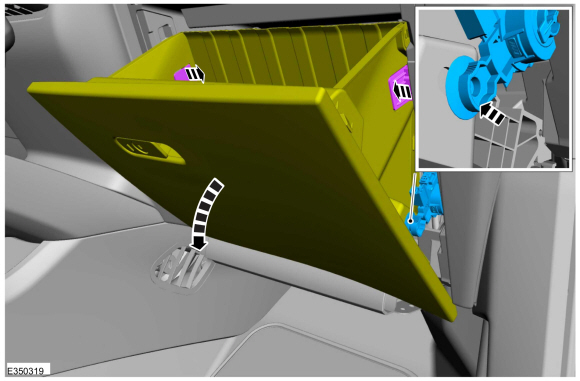

  1. Fully lower the glove compartment.
    • Release the tabs.
    • Disconnect the dampener strap.

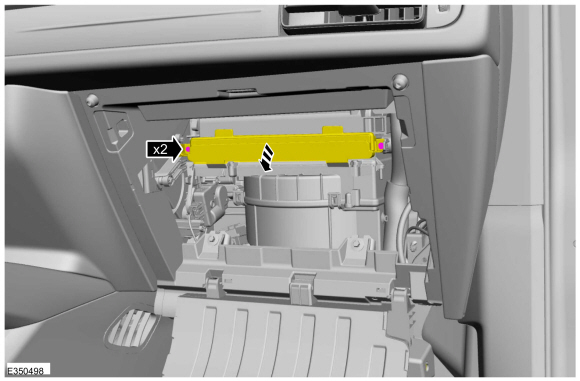

  1. Remove the screws and open the cain air filter door.

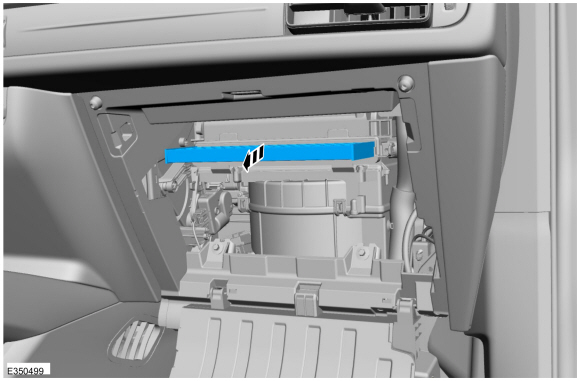

  1. Remove the cabin air filter.


  1. To install, reverse the removal procedure.
