Lincoln Nautilus: Climate Control System - General Information / Blower Motor Speed Control. Removal and Installation

Removal

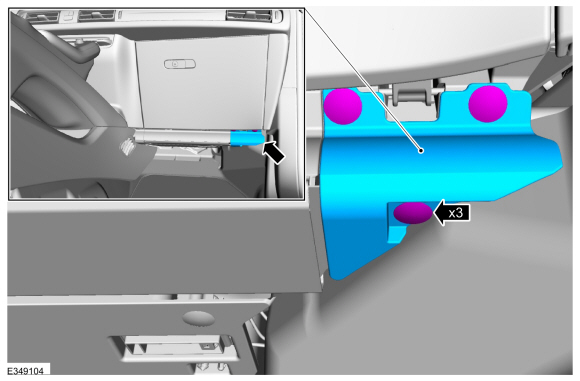

  1. Remove the pin-type retainers and the lower RH trim panel.

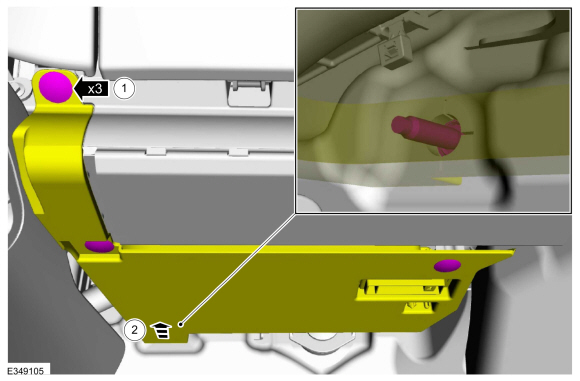

    1. Remove the hush panel pin-type retainers.
    1. Position the insulation panel away from the instrument panel.

  1. Remove the insulator panel.

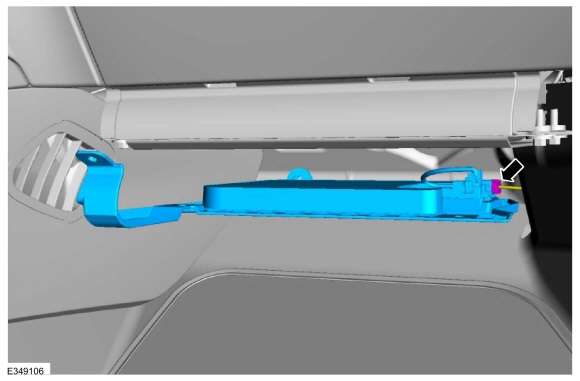

    • Disconnect the electrical connector.
  1. Disconnect the electrical connectors, remove the retainers and the blower motor speed control.

Installation

  1. To install, reverse the removal procedure.
