Lincoln Nautilus: Voltage Converter/Inverter / Direct Current/Direct Current (DC/DC) Converter Control Module. Removal and Installation

Lincoln Nautilus 2018-2023 Service Manual / Electrical / Battery and Charging System / Voltage Converter/Inverter / Direct Current/Direct Current (DC/DC) Converter Control Module. Removal and Installation

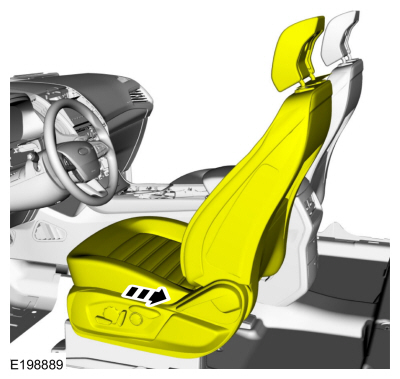

  1. Position the LH front seat rearward.

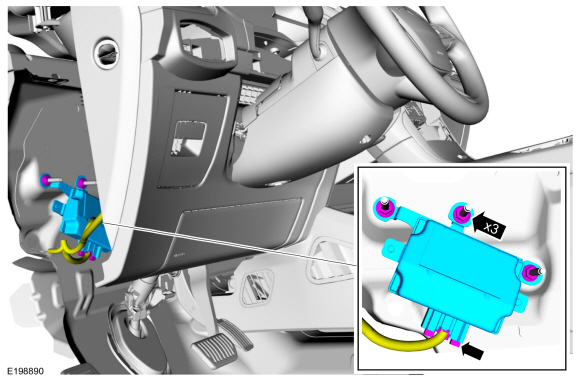

  1. Disconnect the electrical connector, remove the nuts and the DC/DC converter control module.
    Torque: 16 lb.ft (22 Nm)


  1. To install, reverse the removal procedure.
