Lincoln Nautilus: Voltage Converter/Inverter / Direct Current/Alternating Current (DC/AC) Inverter. Removal and Installation
Removal
WARNING:
Disconnect the 12 volt battery before servicing the direct
current to alternating current (DC-AC) inverter or alternating current
(AC) powerpoint to prevent the risk of high voltage shock. Failure to
follow this instruction may result in serious personal injury.
-

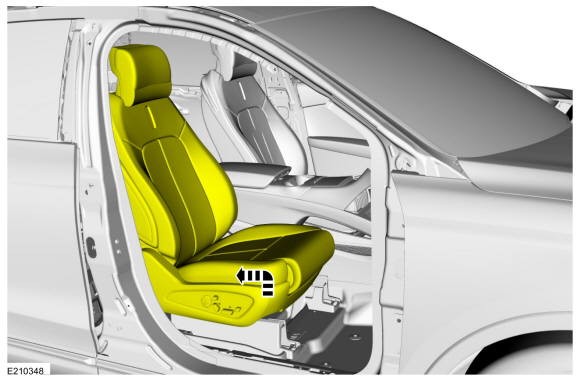

Raise and position the passenger front seat rearward.
 |
-
Disconnect the battery.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables) .
-
NOTE: Seat not shown for clarity.

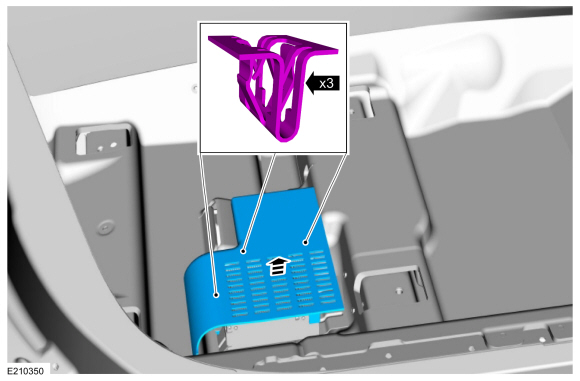

Remove the Direct Current/Alternating Current (DC/AC) inverter cover.
 |
-
-

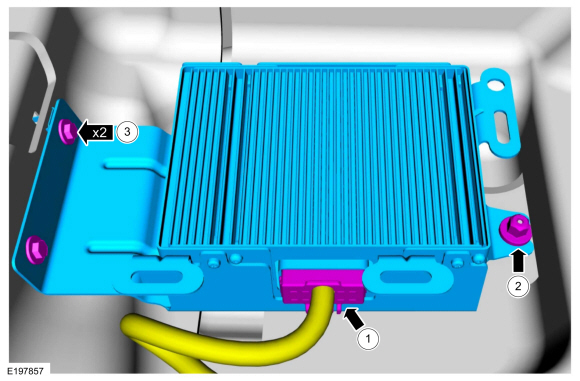

Disconnect the Direct Current/Alternating Current (DC/AC) inverter electrical connector.
-
Remove the Direct Current/Alternating Current (DC/AC) inverter nut.
-
Remove the screws and the Direct Current/Alternating Current (DC/AC) inverter.
-
Disconnect the Direct Current/Alternating Current (DC/AC) inverter electrical connector.
 |
Installation
-
To install, reverse the removal procedure.
Alternating Current (AC) Power Outlet Socket. Removal and Installation
Removal
WARNING:
Disconnect the 12 volt battery before servicing the direct
current to alternating current (DC-AC) inverter or alternating current
(AC) powerpoint to prevent the risk of high voltage shock...
Direct Current/Direct Current (DC/DC) Converter Control Module. Removal and Installation
Removal
Position the LH front seat rearward.
Disconnect the electrical connector, remove the nuts and the DC/DC converter control module...
