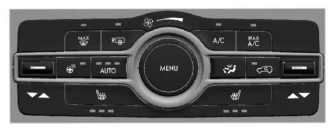

Depending on your vehicle options, the
controls could look different than what you
see here.
Other information:
System Operation
Rear Only Parking Aid Camera
System Diagram
Item
Description
1
Video signal
2
PCM
3
ABS Module
4
PSCM
5
GWM
6
APIM
7
BCM
8
PAM
9
Rear parking aid camera
10
TRM
11
With trailer tow
12
FDIM
Network Message Chart
BCM Net..
System Operation
Rear Heated Seats
The
heated seats operate in a sequence of high, low and off with each press
of the heated seat switch. Rear heated seats are equipped with a single
heated seat module to control both outboard rear heated seats. The
heated seat module is attached to the underside of the rear seat
cushion. The heated seat switch buttons are located in the rear panel of
th..
