Lincoln Nautilus: Climate Control System - General Information / Receiver Drier Element - 2.0L EcoBoost (184kW/250PS) – MI4. Removal and Installation

Lincoln Nautilus 2018-2022 Service Manual / Electrical / Climate Control System / Climate Control System - General Information / Receiver Drier Element - 2.0L EcoBoost (184kW/250PS) – MI4. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Recover the refrigerant. Refer to the appropriate Recovery procedure in Group 412.
  1. Remove the CAC .
    Refer to: Charge Air Cooler (CAC) (303-12A Intake Air Distribution and Filtering - 2.0L EcoBoost (184kW/250PS) – MI4, Removal and Installation).

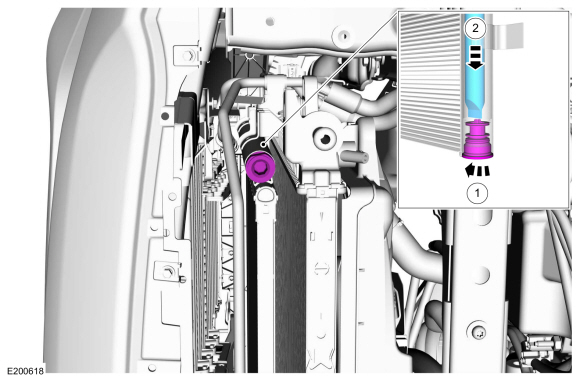

  1. Remove the receiver drier plug and the receiver drier element.

Installation

  1. To install, reverse the removal procedure.
  1. Lubricate the refrigerant system with the correct amount of clean PAG oil. Refer to the appropriate Refrigerant Oil Adding procedure in Group 412.
