Lincoln Nautilus: Climate Control System - General Information / Passenger Temperature Door Actuator. Removal and Installation
Removal
-
Refer to: Passenger Knee Airbag (501-20B Supplemental Restraint System, Removal and Installation).
-
Remove the HCM .
-

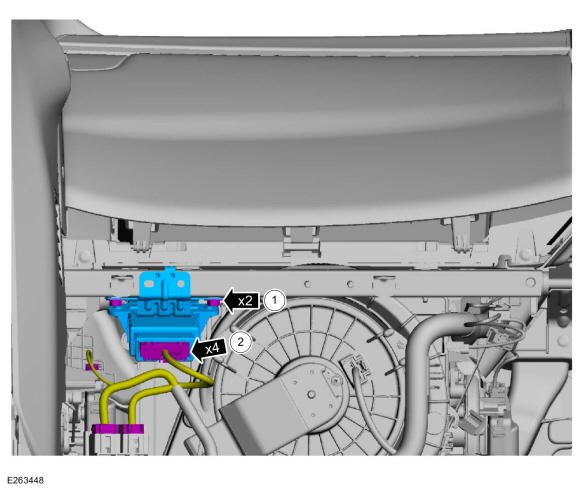

Remove the headlamp control module bracket bolts and the HCM .
Torque: 80 lb.in (9 Nm)
-
Disconnect the electrical connectors.
-
Remove the headlamp control module bracket bolts and the HCM .
.jpg) |
-

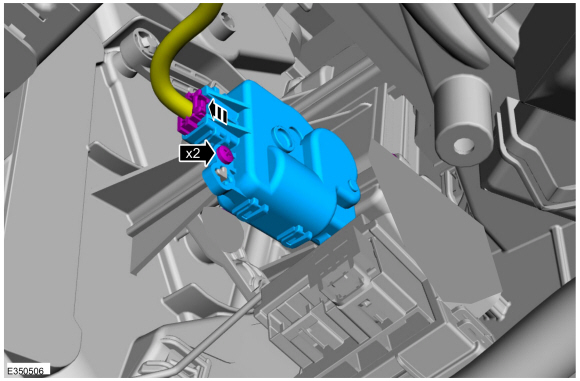

Remove the screws and the passenger tempreature door actuator.
-
Disconnect the electrical connector.
-
Disconnect the electrical connector.
 |
Installation
-
To install, reverse the removal procedure.
