Lincoln Nautilus: Climate Control System - General Information / Driver Side Register. Removal and Installation
Special Tool(s) /
General Equipment
Removal
-

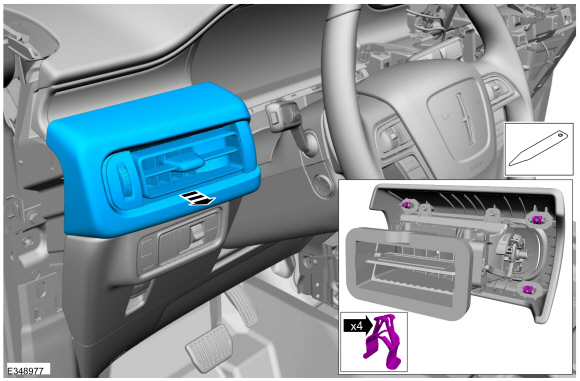

Release the clips and remove the LH instrument panel trim panel.
Use the General Equipment: Interior Trim Remover
-

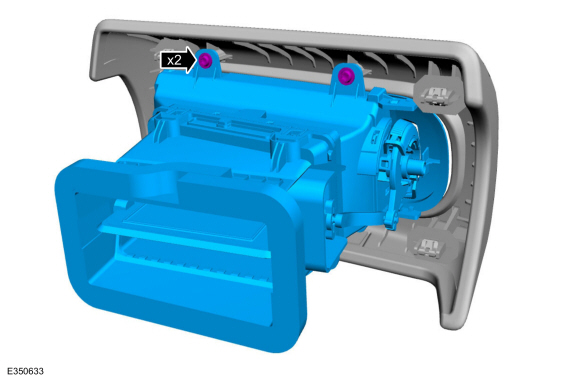

Remove the screws and the drivers side register.
-

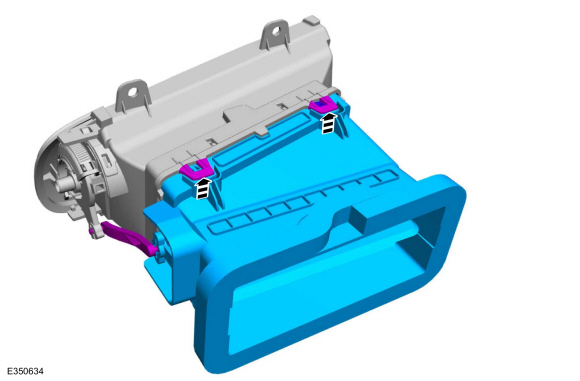

Remove the arm, lift the tabs and separate the register and dampener.
Installation
-
To install, reverse the removal procedure.
Removal
Remove the climate control housing.
Refer to: Climate Control Housing (412-00 Climate Control System - General Information, Removal and Installation)...
Removal
Remove the instrument panel.
Refer to: Instrument Panel (501-12 Instrument Panel and Console, Removal and Installation).
