Lincoln Nautilus: Climate Control System - General Information / Driver Side Footwell Air Discharge Temperature Sensor. Removal and Installation

Lincoln Nautilus 2018-2026 Service Manual / Electrical / Climate Control System / Climate Control System - General Information / Driver Side Footwell Air Discharge Temperature Sensor. Removal and Installation

Removal

Remove the climate control housing.
Refer to: Climate Control Housing (412-00 Climate Control System - General Information, Removal and Installation).

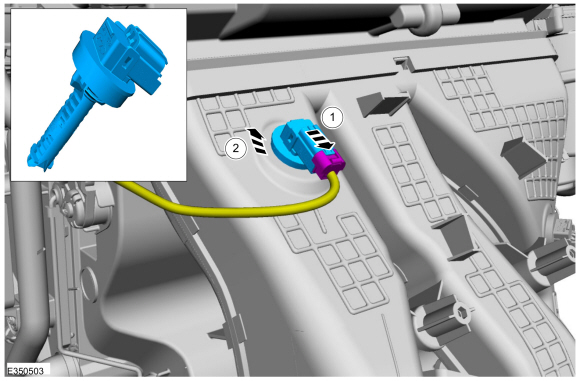

1. Disconnect the electrical connector.
1. Rotate and remove the sensor.

Installation

To install, reverse the removal procedure.
