Lincoln Nautilus: Rear View Mirrors / Interior Rear View Mirror. Removal and Installation

Lincoln Nautilus 2018-2024 Service Manual / Body and Paint / Body and Paint / Rear View Mirrors / Interior Rear View Mirror. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

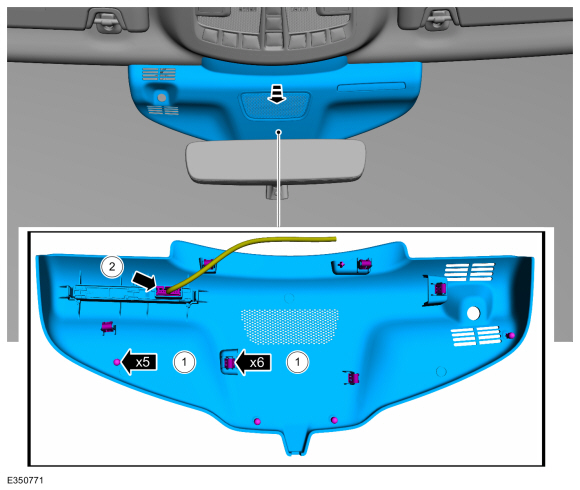

  1. Remove the IPMA cover.
    1. Release the tabs and clips from the IPMA cover.
    1. Disconnect the wiring harness electrical connector and remove the IPMA cover.

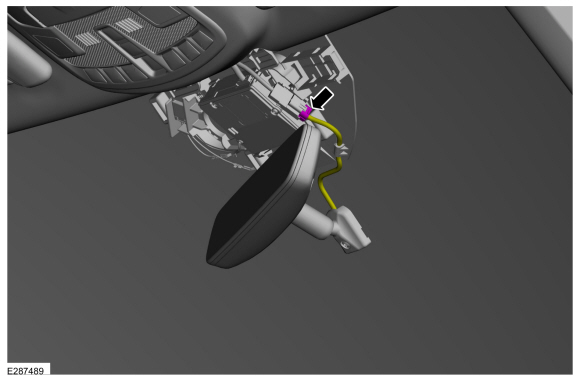

  1. Disconnect the electrical connector and position the wiring harness aside.

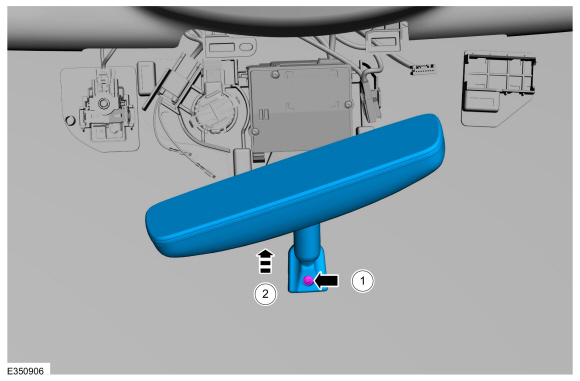

  1. Remove the interior mirror.
    1. Loosen the set screw.
      Torque: 17 lb.in (1.9 Nm)
    1. Slide the interior mirror upward.

Installation

  1. To install, reverse the removal procedure.
