Lincoln Nautilus: Parking Aid - Vehicles With: Rear Parking Aid / Parking Assist Control Module (PAM). Removal and Installation

Removal

  1. NOTE: If installing a new PAM , it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new PAM after installation.

    Using a diagnostic scan tool, begin the PMI process for the PAM following the onscreen instructions.
  1. Remove the driver knee airbag.
    Refer to: Driver Knee Airbag (501-20B Supplemental Restraint System, Removal and Installation).

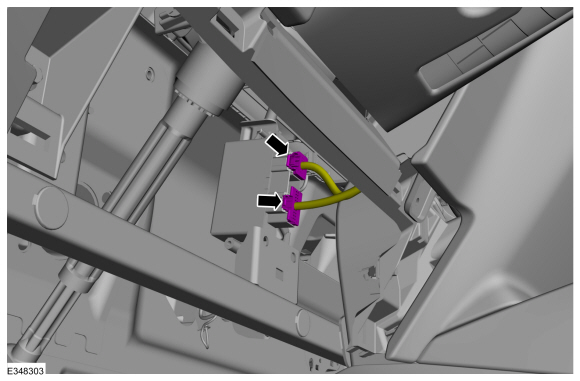

  1. Disconnect the electrical connectors.
  1. Remove the nuts and the PAM .
    Torque: 71 lb.in (8 Nm)

Installation

  1. To install, reverse the removal procedure.
  1. NOTE: This step is only necessary when installing a new component.

    Using a diagnostic scan tool, complete the PMI process for the PAM following the on-screen instructions.
