Lincoln Nautilus: Climate Control System - General Information / Passenger Side Register Air Discharge Temperature Sensor. Removal and Installation
Removal
-
Remove the instrument panel.
Refer to: Instrument Panel (501-12 Instrument Panel and Console, Removal and Installation).
-
-

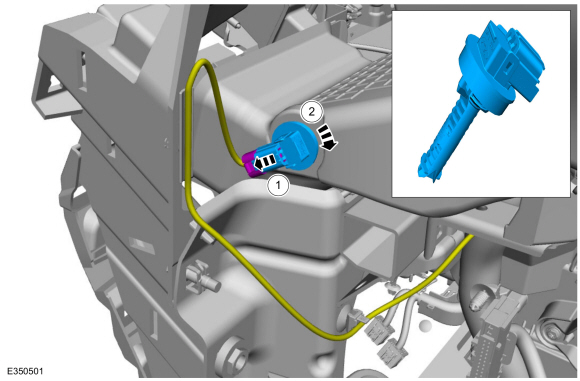

Disconnect the electrical connector.
-
Rotate and remove the sensor.
Installation
-
To install, reverse the removal procedure.
