Lincoln Nautilus: Wipers and Washers / Rear Parking Aid Camera Washer Jet. Removal and Installation

Lincoln Nautilus 2018-2024 Service Manual / Body and Paint / Body and Paint / Wipers and Washers / Rear Parking Aid Camera Washer Jet. Removal and Installation

Removal

  1. Remove the reversing lamp.
    Refer to: Reversing Lamp (417-01 Exterior Lighting, Removal and Installation).

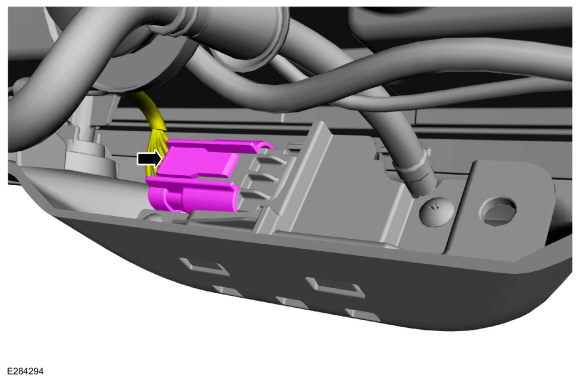

  1. Disconnect the electrical connector.

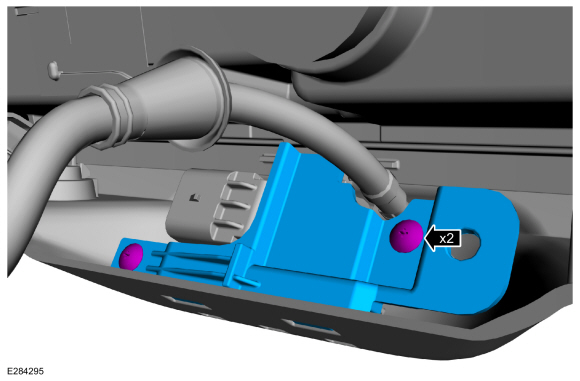

  1. Remove the screws and the plate.

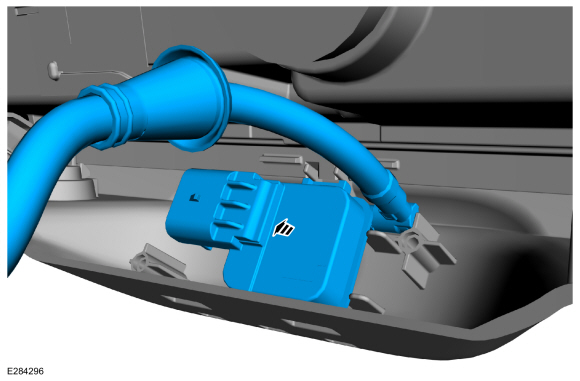

  1. Remove the rear parking aid camera and washer jet.

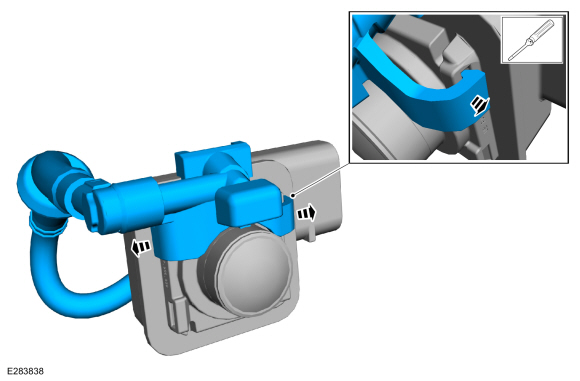

  1. Detach the arms and remove the rear parking aid camera and washer jet.

Installation

  1. To install, reverse the removal procedure.
