Lincoln Nautilus: Wipers and Washers / Rear Window Wiper Motor. Removal and Installation

Lincoln Nautilus 2018-2025 Service Manual / Body and Paint / Body and Paint / Wipers and Washers / Rear Window Wiper Motor. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear window wiper pivot arm.
Refer to: Rear Window Wiper Pivot Arm (501-16 Wipers and Washers, Removal and Installation).

Remove the liftgate trim panel.
Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

Disconnect the wiper motor electrical connector.

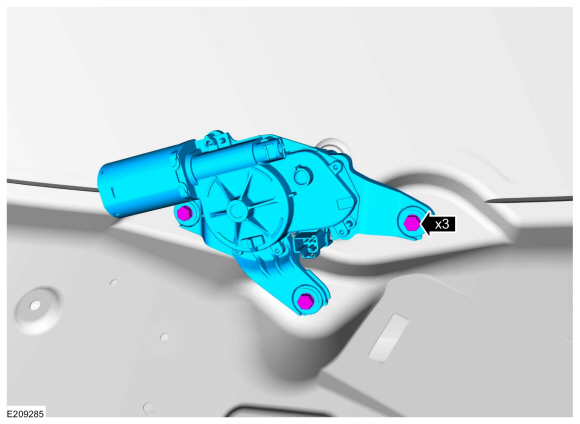

Remove the bolts and the rear window wiper motor.
Torque: 62 lb.in (7 Nm)

Installation

To install, reverse the removal procedure.
