Lincoln Nautilus: Rear Suspension / Rear Suspension - Component Location. Description and Operation
Lincoln Nautilus 2018-2026 Service Manual / Chassis / Suspension / Rear Suspension / Rear Suspension - Component Location. Description and Operation

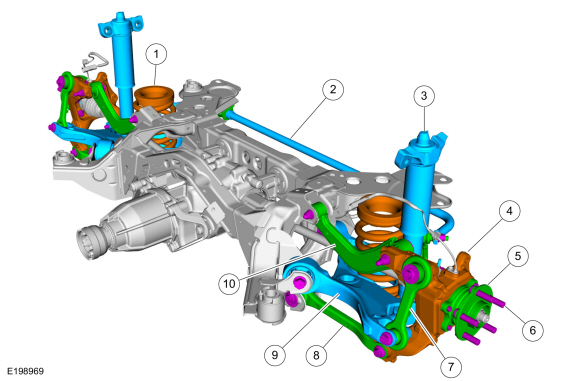

NOTE: AWD suspension shown, FWD similar.
| Item | Description |
|---|---|
| 1 | Coil spring |
| 2 | Stabilizer bar and links |
| 3 | Shock absorber |
| 4 | Wheel knuckle |
| 5 | Wheel bearing and wheel hub assembly |
| 6 | Wheel studs |
| 7 | Lower arm vertical link |
| 8 | Toe link |
| 9 | Lower arm and bushing assembly |
| 10 | Upper arm |
Rear Suspension - Overview. Description and Operation
Overview
The rear suspension consists of the following components:
Coil springs
Lower arm and bushing assemblies
Shock absorbers
Stabilizer bar and links
Toe links
Upper arms
Lower arm vertical links
Wheel bearing and wheel hub assemblies
Wheel knuckles
Wheel studs
The
rear suspension uses 2 parallel arms (1 upper and 1 lower)...
