Lincoln Nautilus: Information and Entertainment System - General Information - Vehicles With: SYNC 4 / Telematics Control Unit (TCU) Module Antenna. Removal and Installation


  1. Remove the LH loadspace trim panel.
    Refer to: Loadspace Trim Panel (501-05) .

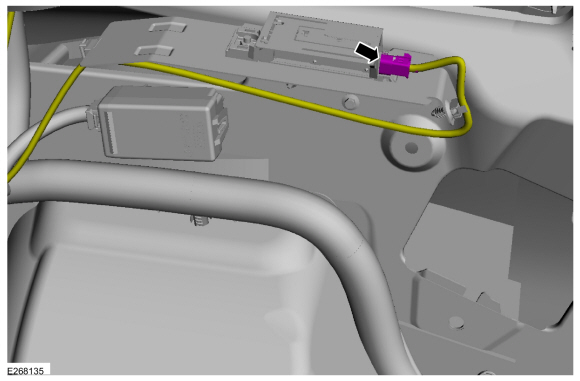

  1. Disconnect the TCU antenna coaxial connector.

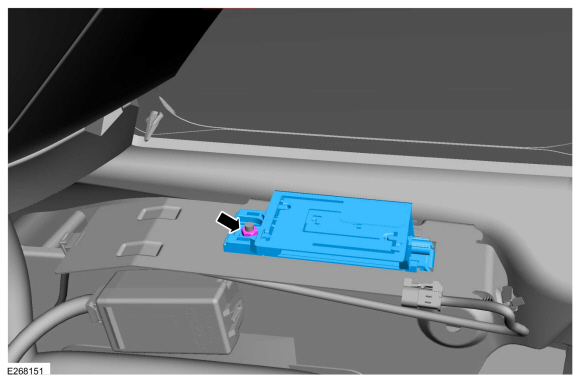

  1. Remove the nut and the TCU antenna.
    Torque: 49 (5.5 Nm)


  1. To install, reverse the removal procedure.
