Lincoln Nautilus: Information and Entertainment System - General Information - Vehicles With: SYNC 4 / Audio Digital Signal Processing (DSP) Module. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

    Using a diagnostic scan tool, begin the PMI process for the DSP following the on-screen instructions.
  1. Remove the LH loadspace trim panel.
    Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

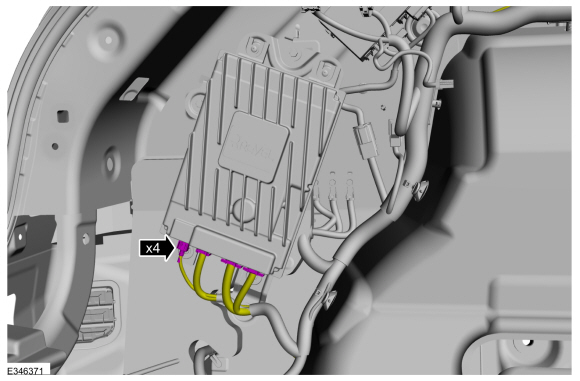

  1. Disconnect the electrical connectors.

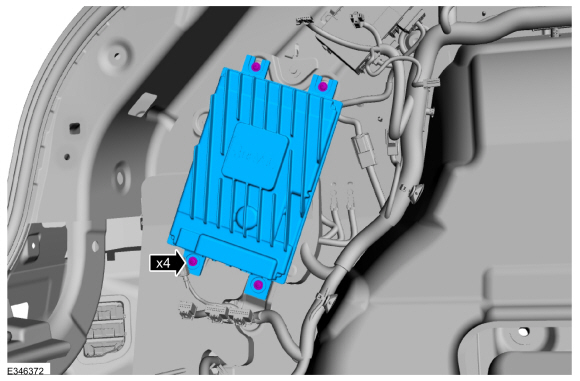

  1. Remove the bolts and the DSP .
    Torque: 80 lb.in (9 Nm)

Installation

  1. To install, reverse the removal procedure.
  1. NOTE: This step is only necessary when installing a new component.

    Using a diagnostic scan tool, complete the PMI process for the DSP following the on-screen instructions.

    Active Noise Control Microphone. Removal and Installation

    Removal Lower the headliner. Refer to: Headliner - Lowering (501-05) . NOTE: For active noise cancellation microphone bezel installation issues see headliner removal and installation...

    Audio Front Control Module (ACM). Removal and Installation

    Removal NOTE: Removal steps in this procedure may contain installation details. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module...
