Lincoln Nautilus: Battery, Mounting and Cables / Battery Cables - 2.0L EcoBoost (184kW/250PS) – MI4. Removal and Installation

Lincoln Nautilus 2018-2024 Service Manual / Electrical / Battery and Charging System / Battery, Mounting and Cables / Battery Cables - 2.0L EcoBoost (184kW/250PS) – MI4. Removal and Installation

Removal

NOTE: This procedure provides information about routing, retaining points and connectors of the cable. It does not include the steps for removing components to gain access to the cable.

NOTE: Removal steps in this procedure may contain installation details.

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. Disconnect the battery.
    Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

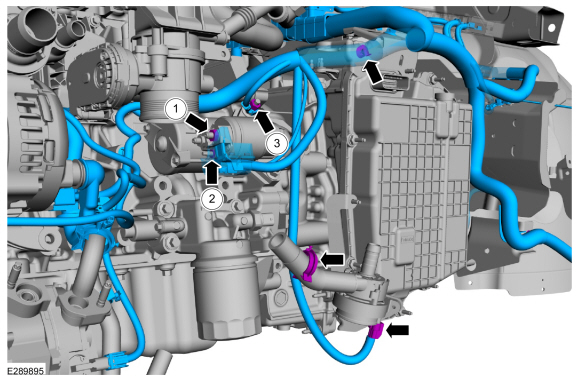

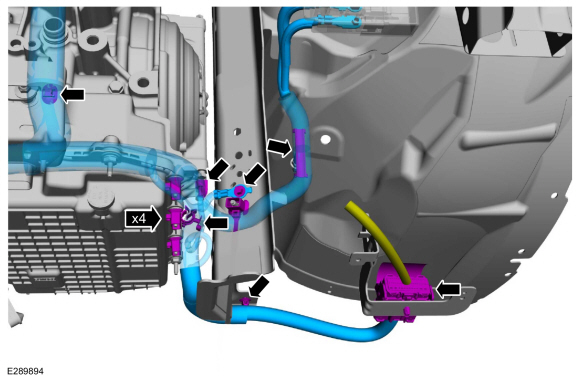

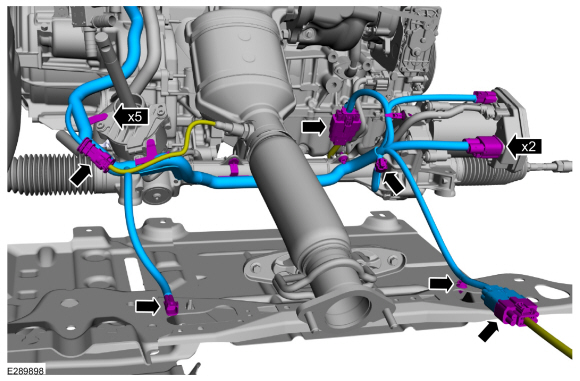

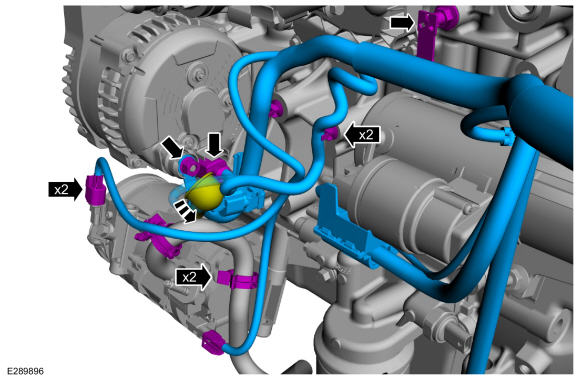

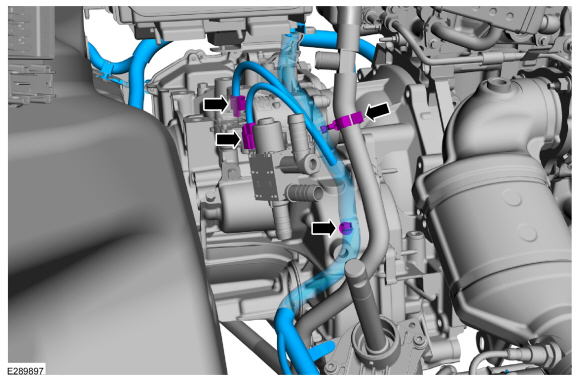

    1. Torque: 48 lb.in (5.4 Nm)
    1. Torque: 106 lb.in (12 Nm)
    1. Torque: 106 lb.in (12 Nm)
    1. Torque: 48 lb.in (5.4 Nm)
  1. Torque: 93 lb.in (10.5 Nm)
    1. Torque: 106 lb.in (12 Nm)
    1. Torque: 55 lb.in (6.2 Nm)
    1. Torque: 155 lb.in (17.5 Nm)
  1. Torque: 155 lb.in (17.5 Nm)

Installation

  1. To install, reverse the removal procedure.
