Lincoln Nautilus: Body Closures / Body Closures - Component Location. Description and Operation

Lincoln Nautilus 2018-2025 Service Manual / Body and Paint / Body and Paint / Body Closures / Body Closures - Component Location. Description and Operation

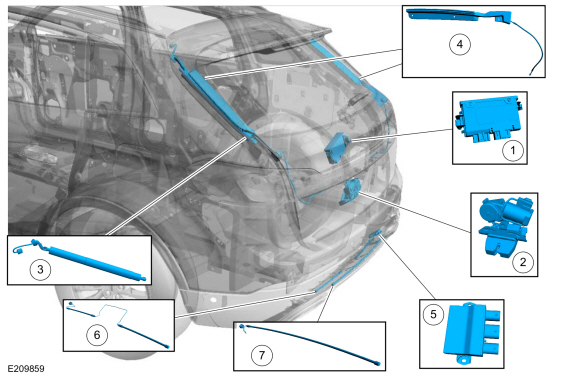

Item Description
1 RGTM
2 Power liftgate latch
3 Power liftgate motor
4 Liftgate anti-pinch switches
5 Hands-free liftgate actuation module (if equipped)
6 Hands-free liftgate actuation lower sensor (if equipped)
7 Hands-free liftgate actuation upper sensor (if equipped)
