Lincoln Nautilus: Body Closures / Hands-Free Liftgate Actuation Upper Sensor. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-
Remove the rear bumper cover.
Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).
-

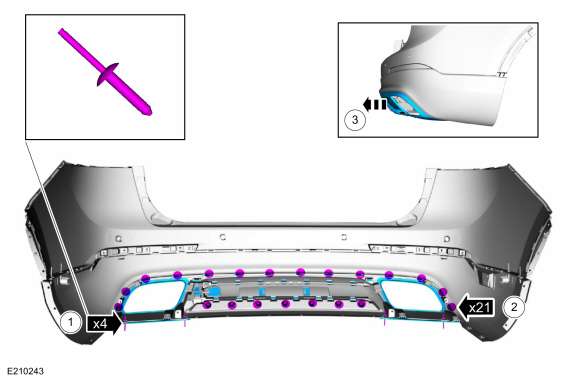

Remove the lower rear bumper cover.
-
Remove the rivets.
-
Release the tabs.
-
Separate the lower rear bumper cover from the center rear bumper cover.
-
Remove the rivets.
 |
-

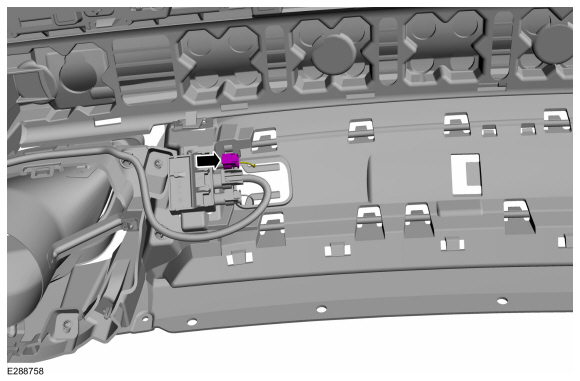

Disconnect the hands-free liftgate actuation upper sensor electrical connector.
 |
-
Remove the hands-free liftgate actuation upper sensor.
.jpg) |
Installation
-
To install, reverse the removal procedure.
