Lincoln Nautilus: Climate Control System - General Information / Driver Side Register Air Discharge Temperature Sensor. Removal and Installation

Lincoln Nautilus 2018-2022 Service Manual / Electrical / Climate Control System / Climate Control System - General Information / Driver Side Register Air Discharge Temperature Sensor. Removal and Installation

Removal

  1. Remove the instrument panel.
    Refer to: Instrument Panel (501-12 Instrument Panel and Console, Removal and Installation).

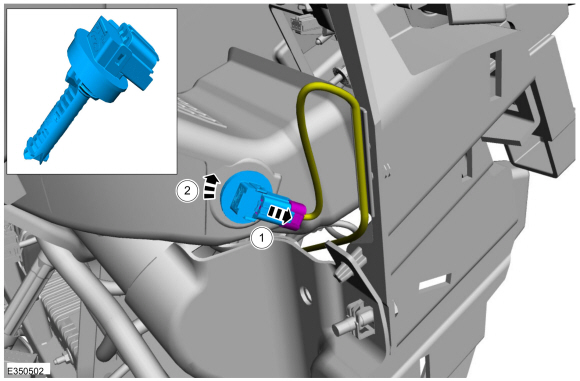

    1. Disconnect the electrical connector.
    1. Rotate and remove the sensor.

Installation

  1. To install, reverse the removal procedure.
