Lincoln Nautilus: Information and Entertainment System - General Information - Vehicles With: SYNC 4 / Front Controls Interface Module B (FCIMB). Removal and Installation

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

    Using a diagnostic scan tool, begin the PMI process for the FCIMB following the on-screen instructions.

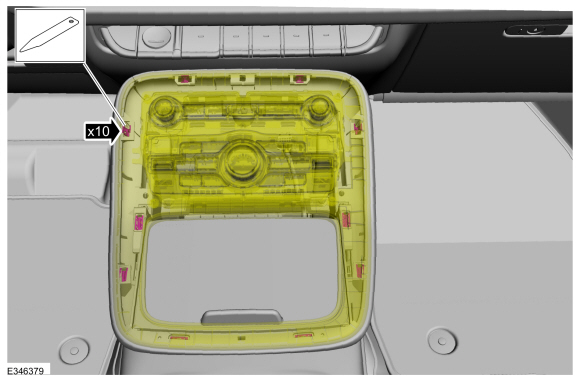

  1. Release the clips, and position the FCIMB and bezel as an assembly.
    Use the General Equipment: Interior Trim Remover

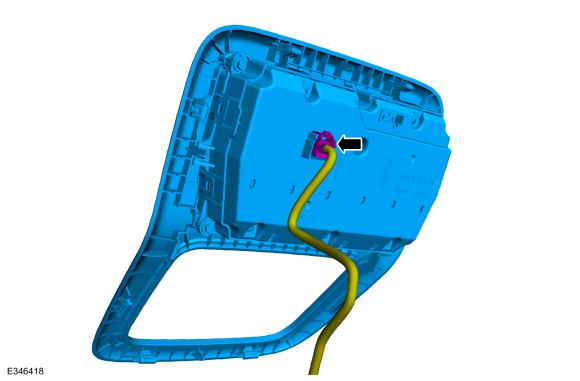

  1. Disconnect the electrical connector and remove the FCIMB and bezel as an assembly.

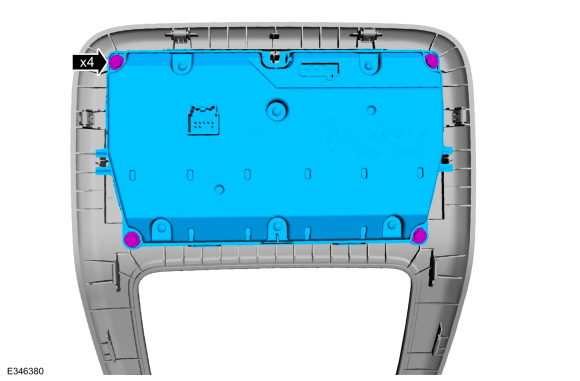

  1. Remove the screws and the FCIMB .

Installation

  1. To install, reverse the removal procedure.
  1. NOTE: This step is only necessary when installing a new component.

    Using a diagnostic scan tool, complete the PMI process for the FCIMB following the on-screen instructions.
