Removal

NOTE: Removal steps in this procedure may contain installation details.

Both speakers

  1. Remove the front door trim panel.
    Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

Door woofer speaker

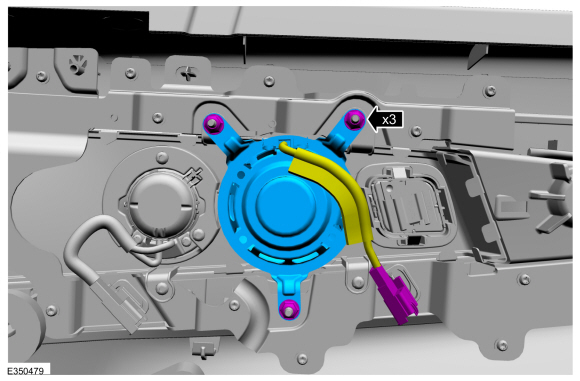

  1. Remove the bolts and the front door speaker.
    • Disconnect the electrical connector.
      Torque: 22 lb.in (2.5 Nm)

Door midrange speaker

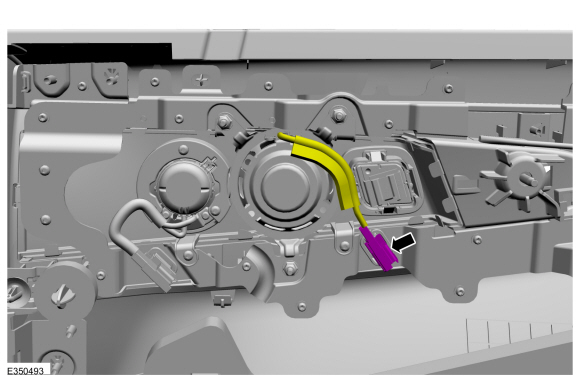

  1. Separate the speaker connector from the front door trim panel.
  1. Remove the nuts and the midrange speaker.
    Torque: 22 lb.in (2.5 Nm)

Installation

  1. To install, reverse the removal procedure.
