Lincoln Nautilus: Front Suspension / Front Stabilizer Bar Link. Removal and Installation

Lincoln Nautilus 2018-2024 Service Manual / Chassis / Suspension / Front Suspension / Front Stabilizer Bar Link. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the wheel and tire.
    Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
  1. NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.

    NOTE: Use the hex-holding feature to prevent the ball stud from turning while removing or installing the stabilizer bar link nut.

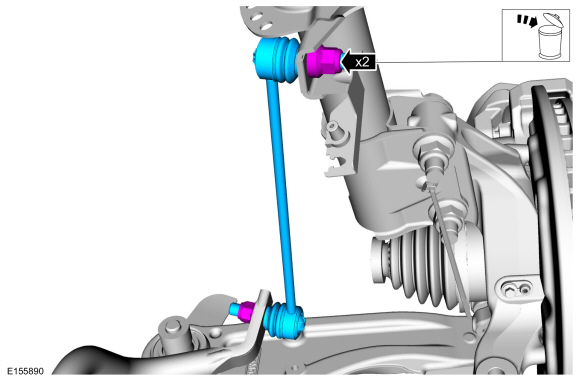

    Remove and discard the front stabilizer bar link nuts and remove the front stabilizer bar link.
    Torque: 85 lb.ft (115 Nm)

Installation

  1. To install, reverse the removal procedure.
