Lincoln Nautilus: Information and Entertainment System - General Information - Vehicles With: SYNC 4 / Instrument Panel Speaker. Removal and Installation
Special Tool(s) / General Equipment
| Interior Trim Remover |
Removal
NOTE: Removal steps in this procedure may contain installation details.
-
Release the clips and remove the instrument panel speaker grille.
Use the General Equipment: Interior Trim Remover
 |
-

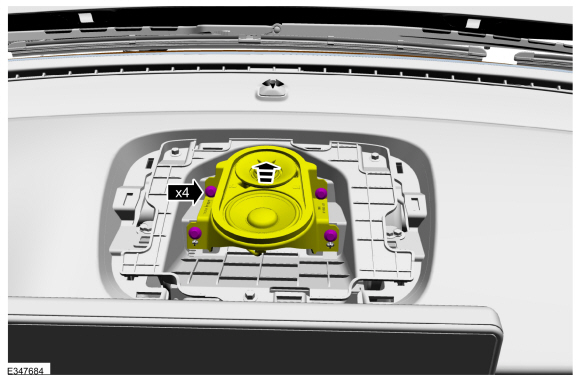

Remove the screws and position the instrument panel speaker up.
Torque: 12 lb.in (1.3 Nm)
.jpg) |
-
Disconnect the electrical connector and remove the instrument panel speaker.
.jpg) |
Installation
-
To install, reverse the removal procedure.
