Lincoln Nautilus: Information and Entertainment System - General Information - Vehicles With: SYNC 4 / Low Voltage Differential Signalling (LVDS) Cable. Removal and Installation


  1. Remove the information and entertainment display unit.
  1. Remove the GSM .
    Refer to: Gear Shift Module (GSM) (307-05A Automatic Transmission External Controls - 8-Speed Automatic Transmission – 8F57, Removal and Installation).

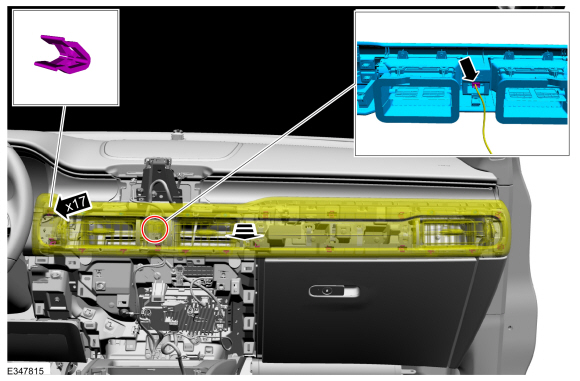

  1. Release the clips, position the center instrument trim panel, disconnect the electrical connector and remove the center instrument trim panel.

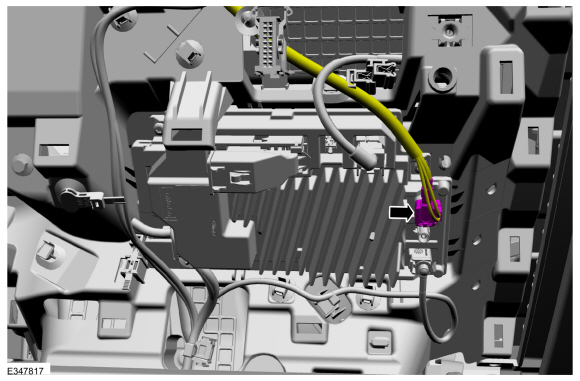

  1. Disconnect the LVDS cable electrical connector.

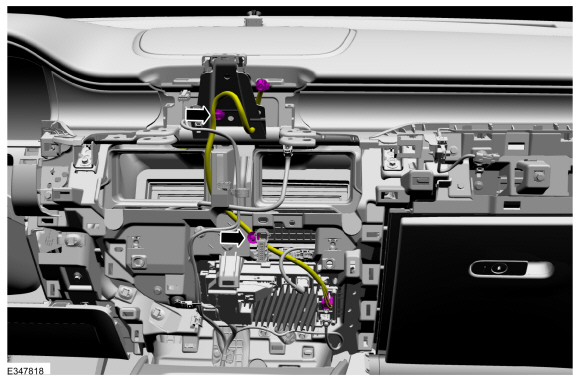

  1. Separate the wiring guides and remove the LVDS cable.


  1. To install, reverse the removal procedure.
