Lincoln Nautilus: Rear Seats / Power Fold Seat Motor. Removal and Installation
Removal
NOTE:
LH rear seat shown, RH rear seat similar.
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the rear seat backrest.
Refer to: Rear Seat Backrest (501-10B Rear Seats, Removal and Installation).
-

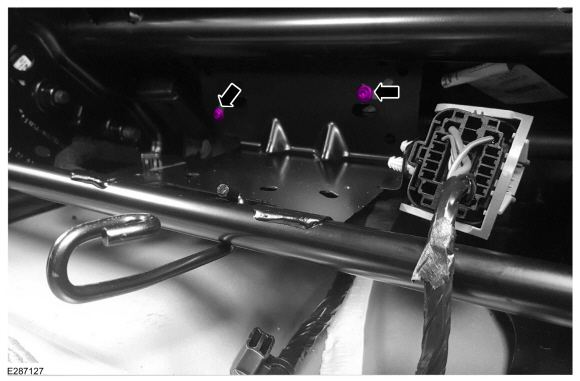

Remove the power fold seat motor screws.
Torque:
31 lb.in (3.5 Nm)
-

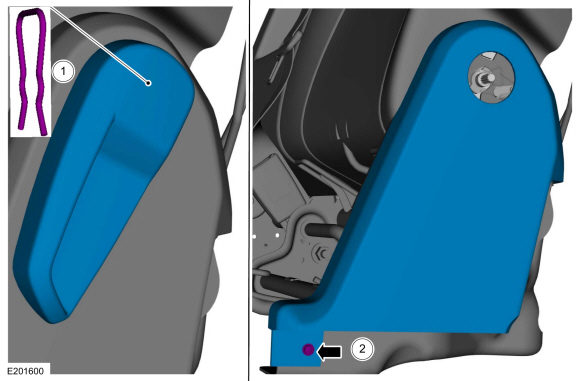

Remove the rear seat backrest outboard side shield.
-
Release the U-clip and remove the backrest recline handle.
-
Remove the fastener and side shield.
-

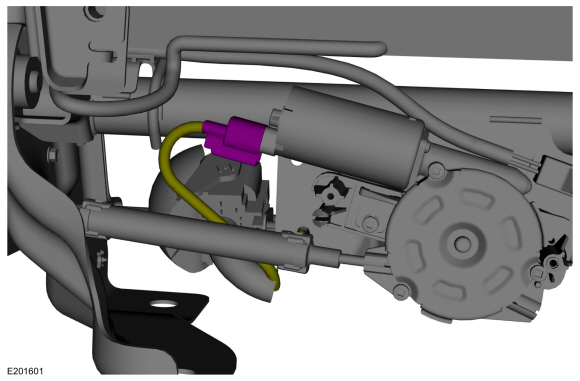

Disconnect the electrical connector.
-

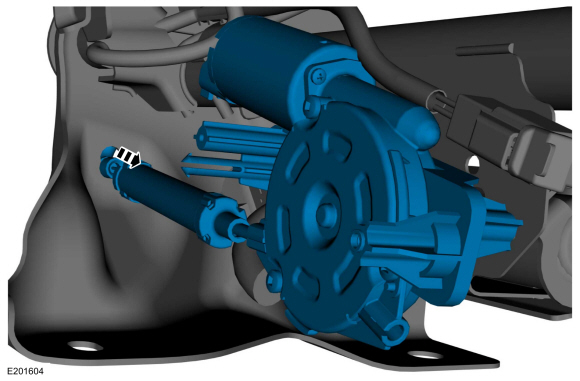

Release the power fold motor cable.
-
Detach the upper cable.
-
Detach the center cable.
-
Lift and release the lower cable. Route the cable through the seat frame opening.
-
Remove the power fold seat motor.
Installation
-
To install, reverse the removal procedure.
Special Tool(s) /
General Equipment
Interior Trim Remover
Removal
On both sides.
Using an interior trim tool, release the power fold seat control switch locking tabs...
Special Tool(s) /
General Equipment
Flat Headed Screw Driver
Removal
NOTE:
LH rear seat shown, RH rear similar.
NOTE:
Typical head restraint guide sleeve shown, others similar...
