Lincoln Nautilus: Front Seats / Power Seats

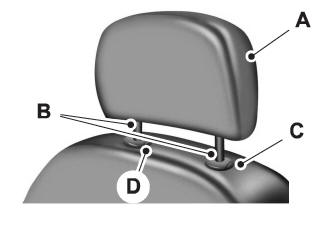

Head Restraint Components

Lincoln Nautilus. Power Seats

The head restraints consist of:

  1. An energy absorbing head restraint.
  2. Two steel stems.
  3. Guide sleeve adjust and unlock button.
  4. Guide sleeve unlock and remove button.

Adjusting the Head Restraint

WARNING: Fully adjust the head restraint before you sit in or operate your vehicle. This will help minimize the risk of neck injury in the event of a crash. Do not adjust the head restraint when your vehicle is moving.

WARNING: The head restraint is a safety device. Whenever possible it should be installed and properly adjusted when the seat is occupied. Failure to adjust the head restraint properly could reduce its effectiveness during certain impacts.

Note: Adjust the seat backrest to an upright driving position before adjusting the head restraint. Adjust the head restraint so that the top of it is level with the top of your head and as far forward as possible. Make sure that you remain comfortable. If you are extremely tall, adjust the head restraint to its highest position.

Pull the head restraint up to raise it.

To lower the head restraint:

  1. Press and hold the adjust and unlock button.
  2. Push the head restraint down.

Removing the Head Restraint

  1. Pull up the head restraint until it reaches its highest position.
  2. Press and hold the adjust and unlock button, and the unlock and remove button.
  3. Pull up the head restraint.

Note: You cannot remove front seat head restraints that have entertainment system video screens.

Installing the Head Restraint

Align the steel stems into the guide sleeves and push the head restraint down until it locks.

Adjusting the Power Head Restraint (If Equipped)

Lincoln Nautilus. Power Seats

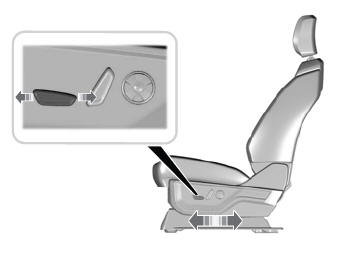

Moving the Seat Backward and Forward

Lincoln Nautilus. Power Seats

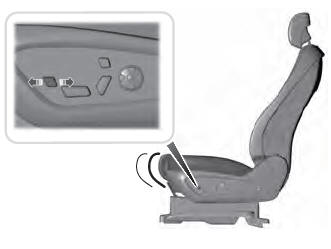

Adjusting the Seat Cushion (If Equipped)

Lincoln Nautilus. Power Seats

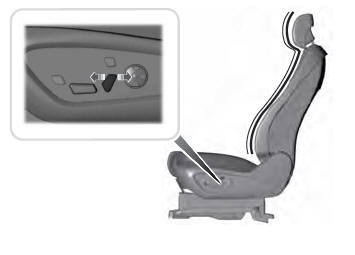

Adjusting the Length of the Seat Cushion (If Equipped)

Lincoln Nautilus. Power Seats

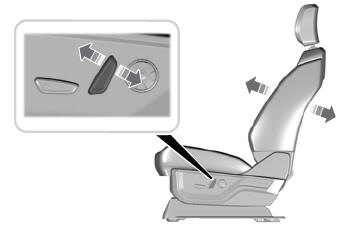

Adjusting the Seat Backrest

WARNING: Do not place cargo or any objects behind the seatback before returning it to the original position.

Lincoln Nautilus. Power Seats

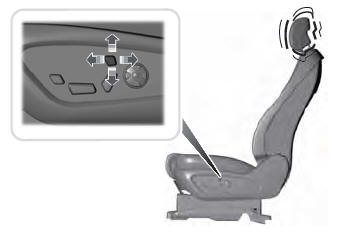

Adjusting the Upper Seat Backrest and Head Restraint (If Equipped)

Lincoln Nautilus. Power Seats

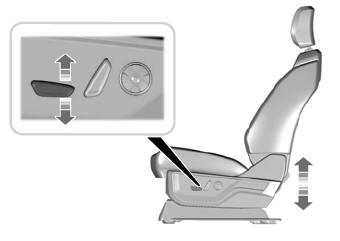

Adjusting the Seat Height

Lincoln Nautilus. Power Seats

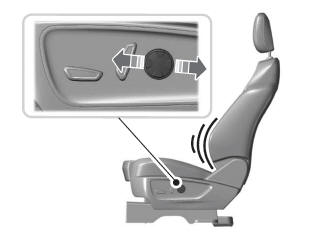

Adjusting the Lumbar Support

Lincoln Nautilus. Power Seats

    Sitting in the Correct Position

    When you use them properly, the seat, head restraint, seatbelt and airbags will provide optimum protection in the event of a crash. We recommend that you follow these guidelines: Sit in an upright position with the base of your spine as far back as possible...

    Massage Seats

    Massage Seat Limitations The engine must be running or the vehicle must be in accessory mode to activate the seats. Allow a few seconds for any selection to activate...
