Lincoln Nautilus: Seatbelt Systems / Rear Center Seatbelt Retractor. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the LH rear seat backrest cover.
Refer to: Rear Seat Backrest Cover (501-10B Rear Seats, Removal and Installation).
-

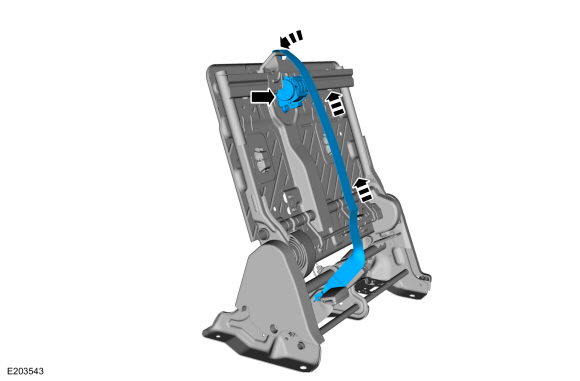

Remove the backrest foam.
-
Position the seatbelt.
-
Remove the foam.
-

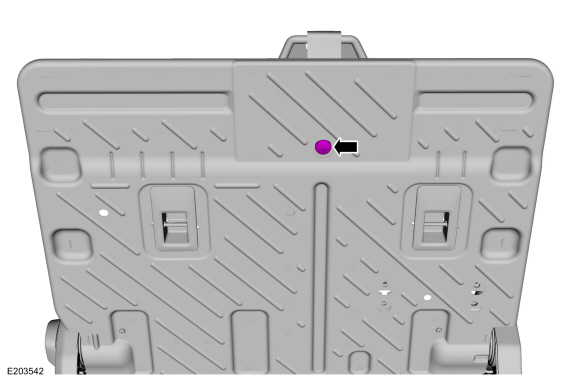

Remove the seatbelt retractor bolt.
Torque:
30 lb.ft (40 Nm)
-
Remove the seatbelt retractor while feeding the seatbelt through the guide.
Installation
NOTE:
During installation, make sure the seatbelt webbing is not
twisted and the seatbelts and buckles are accessible to the occupants.
-
To install, reverse the removal procedure.
-
Check the seatbelt system for correct operation.
Refer to: Seatbelt Systems (501-20 Seatbelt Systems)
.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the rear seat cushion.
Refer to: Rear Seat Cushion (501-10B Rear Seats, Removal and Installation)...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
All rear seatbelt buckles
Remove the rear seat cushion...
