Lincoln Nautilus: Information and Entertainment System - General Information - Vehicles With: SYNC 4 / Rear Door Tweeter Speaker. Removal and Installation


			Removal
 All vehicles


 -
 Remove the rear door trim panel.
 Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).



 Vehicles with: Harman Revel Audio System




 -

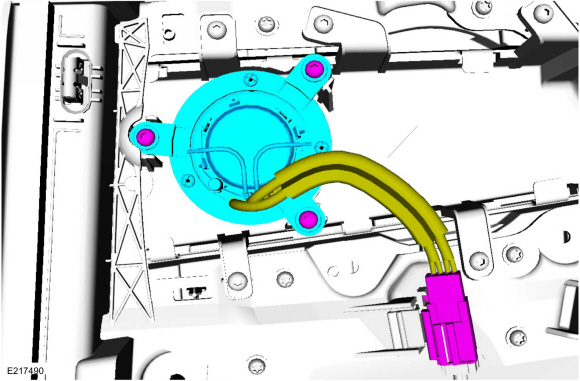

 Remove the screws and the tweeter speaker through the front of the door panel.




 Vehicles with: AM/FM/CD/SYNC/Touchscreen Display




 -
 Remove the screws and the tweeter speaker.





 Installation


 -
 To install, reverse the removal procedure.

   Removal
 NOTE:
 Removal steps in this procedure may contain installation details.

 Both speakers




 Remove the rear door trim panel.
 Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...


   Removal
 NOTE:
 Removal steps in this procedure may contain installation details.





 Remove the information and entertainment display unit.







 Remove the ACM ...
