Lincoln Nautilus: Information and Entertainment System - General Information - Vehicles With: SYNC 4 / Satellite Radio / Global Positioning System (GPS) Splitter / Cable. Removal and Installation

Lincoln Nautilus 2018-2023 Service Manual / Electrical / Information and Entertainment Systems / Information and Entertainment System - General Information - Vehicles With: SYNC 4 / Satellite Radio / Global Positioning System (GPS) Splitter / Cable. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the information and entertainment display unit.
  1. Remove the ACM .
    Refer to: Audio Front Control Module (ACM) (415-00 Information and Entertainment System - General Information - Vehicles With: SYNC 4, Removal and Installation).
  1. Remove the GSM .
    Refer to: Gear Shift Module (GSM) (307-05A Automatic Transmission External Controls - 8-Speed Automatic Transmission – 8F57, Removal and Installation).

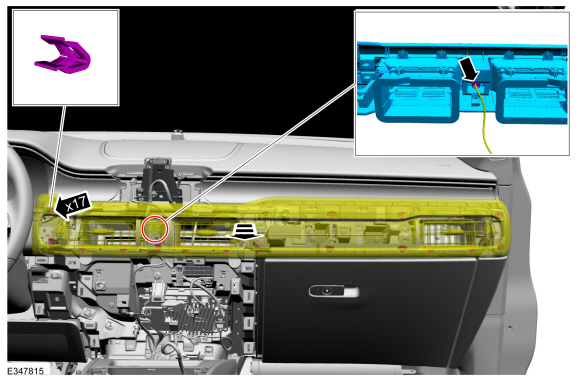

  1. Release the clips, position the center instrument trim panel, disconnect the electrical connector and remove the center instrument trim panel.

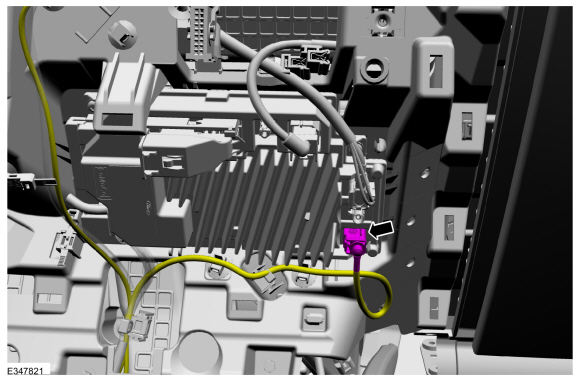

  1. Disconnect the satellite radio / GPS splitter / cable cable electrical connector.

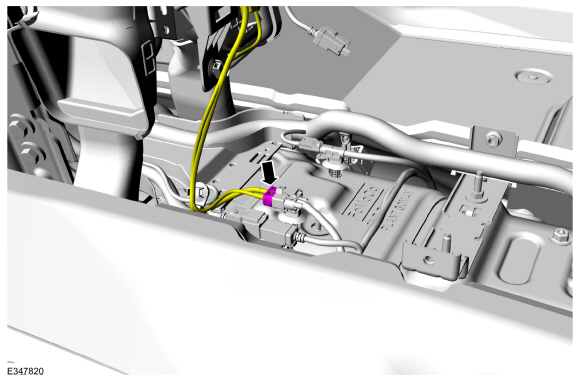

  1. Disconnect the satellite radio / GPS splitter / cable lower connector.

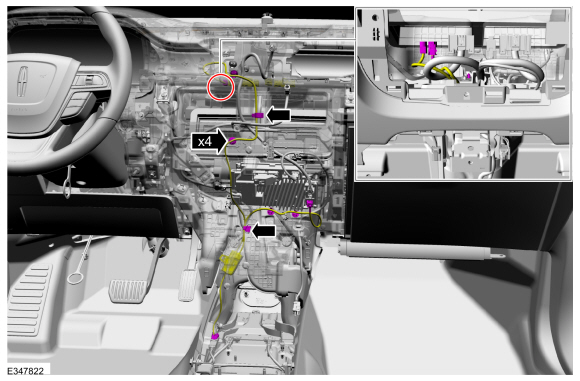

  1. Separate the wiring guides and remove the satellite radio / GPS splitter / cable.

Installation

  1. To install, reverse the removal procedure.
