Lincoln Nautilus: Steering Wheel and Column Electrical Components / Steering Column Multifunction Switch LH. Removal and Installation

Lincoln Nautilus 2018-2024 Service Manual / Chassis / Steering System / Steering Wheel and Column Electrical Components / Steering Column Multifunction Switch LH. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the steering column shrouds.
    Refer to: Steering Column Shrouds (501-05 Interior Trim and Ornamentation, Removal and Installation).
  1. If equipped.
    Remove the steering column control switch.
    Refer to: Steering Column Control Switch (211-05 Steering Wheel and Column Electrical Components, Removal and Installation).
  1. NOTE: Make sure the component terminals are not bent or damaged.

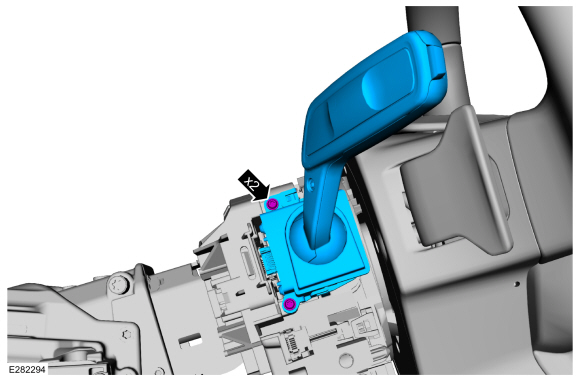

    Remove the screw(s) and the LH steering column multifunction switch.

Installation

  1. To install, reverse the removal procedure.
