Lincoln Nautilus: Information and Entertainment System - General Information - Vehicles With: SYNC 4 / Rear Door Speaker RH. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Both speakers
-
Remove the rear door trim panel.
Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
Door woofer speaker
-
Remove the bolts and the rear door speaker.
-
Disconnect the electrical connector.
Torque:
22 lb.in (2.5 Nm)
Door midrange speaker
-

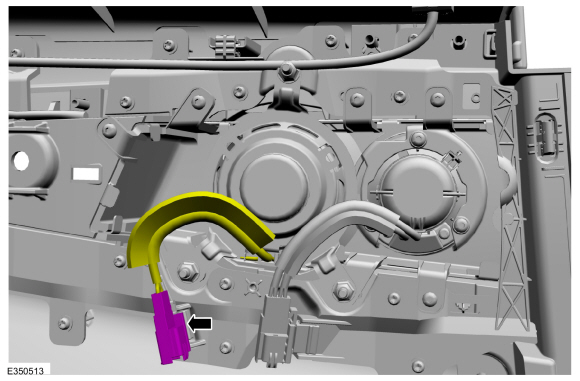

Separate the speaker connector from the rear door trim panel.
-
Remove the nuts and the midrange speaker.
Torque:
22 lb.in (2.5 Nm)
Installation
-
To install, reverse the removal procedure.
