Lincoln Nautilus: Wipers and Washers / Rear Window Wiper Pivot Arm. Removal and Installation

Lincoln Nautilus 2018-2025 Service Manual / Body and Paint / Body and Paint / Wipers and Washers / Rear Window Wiper Pivot Arm. Removal and Installation

Special Tool(s) / General Equipment

Two Leg Puller

Removal

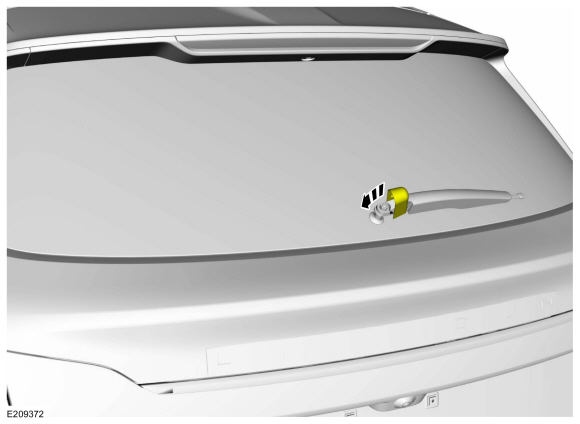

  1. Open the wiper pivot arm nut cover.

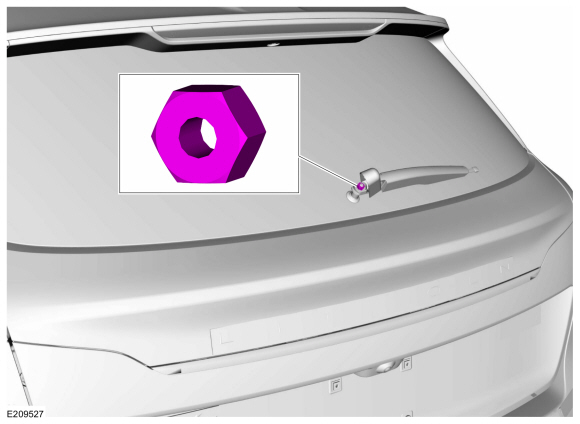

  1. Remove the wiper pivot arm nut.

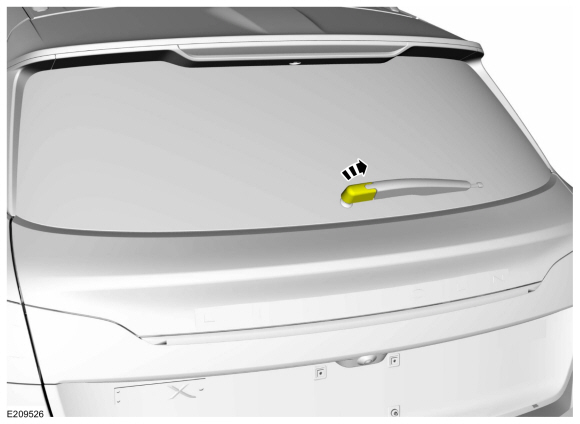

  1. Remove the wiper pivot arm.
    Use the General Equipment: Two Leg Puller

Installation


  1. Verify the rear window wiper motor is in the PARK position.

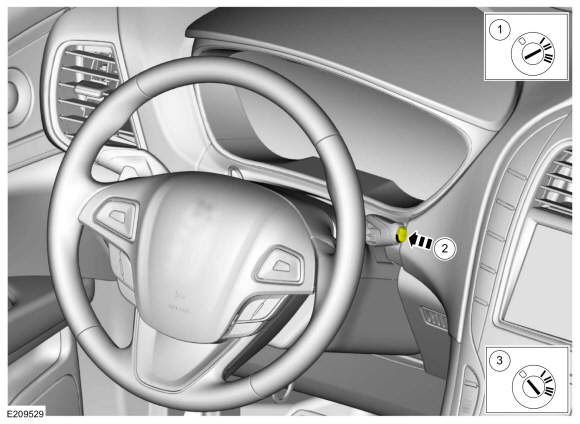

    1. Turn the ignition ON.
    1. Push the rear wiper switch to cycle the rear wiper motor.
    1. Turn the ignition OFF.

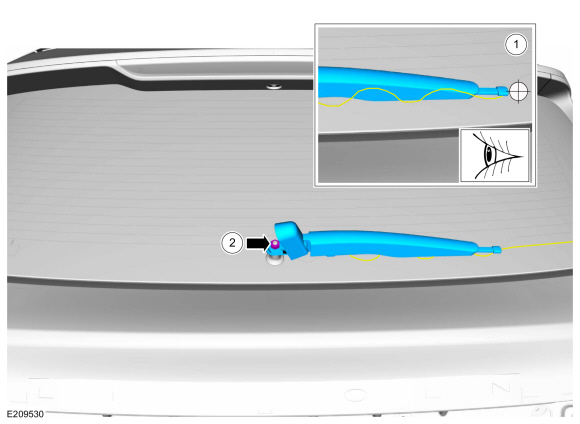

  1. Install the wiper pivot arm.
    1. Align the wiper blade on the 1st defroster grid line.
    1. Install the wiper pivot arm nut.
      Torque: 106 lb.in (12 Nm)
  1. Close the wiper pivot arm nut cover.

    Rear Window Wiper Motor. Removal and Installation

    Removal NOTE: Removal steps in this procedure may contain installation details. Remove the rear window wiper pivot arm. Refer to: Rear Window Wiper Pivot Arm (501-16 Wipers and Washers, Removal and Installation)...

    Windshield Washer Fluid Level Sensor. Removal and Installation

    Special Tool(s) / General Equipment Fluid Suction Gun Fluid Container Materials Name Specification Motorcraft® Premium Windshield Wash Concentrate with BitterantZC-32-B2 WSS-M14P19-A  Removal NOTE: Hood removed in this procedure for clarity...
