Lincoln Nautilus: Supplemental Restraint System / Airbag and Seatbelt Pretensioner Supplemental Restraint System (SRS) - Component Location. Description and Operation
Lincoln Nautilus 2018-2024 Service Manual / Body and Paint / Body and Paint / Supplemental Restraint System / Airbag and Seatbelt Pretensioner Supplemental Restraint System (SRS) - Component Location. Description and Operation

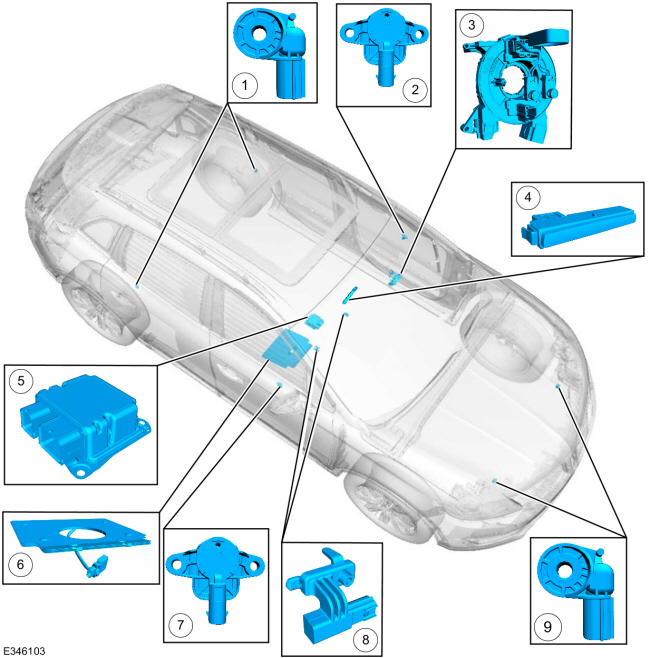

| Item | Description |
|---|---|
| 1 | Driver and passenger C-pillar side impact sensors |
| 2 | Driver front door side impact sensor |
| 3 | Clockspring |
| 4 | PAD indicator |
| 5 | RCM |
| 6 | OCSM (includes OCS sensor and gel-filled bladder) |
| 7 | Passenger front door side impact sensor |
| 8 | Seat position sensors |
| 9 | LH and RH front impact severity sensors |
.jpg)

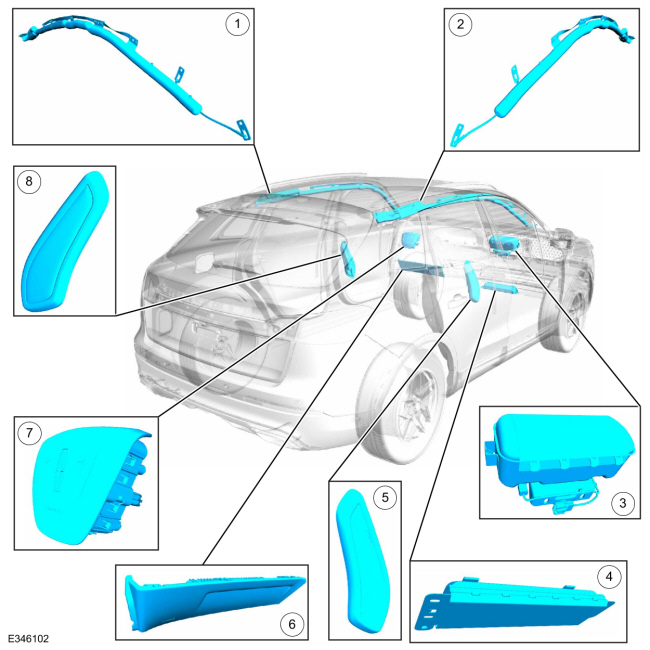

| Item | Description |
|---|---|
| 1 | Driver side air curtain |
| 2 | Passenger side air curtain |
| 3 | Passenger airbag (includes canister vent) |
| 4 | Passenger knee airbag |
| 5 | Passenger side airbag |
| 6 | Driver knee airbag |
| 7 | Driver airbag |
| 8 | Driver side airbag |

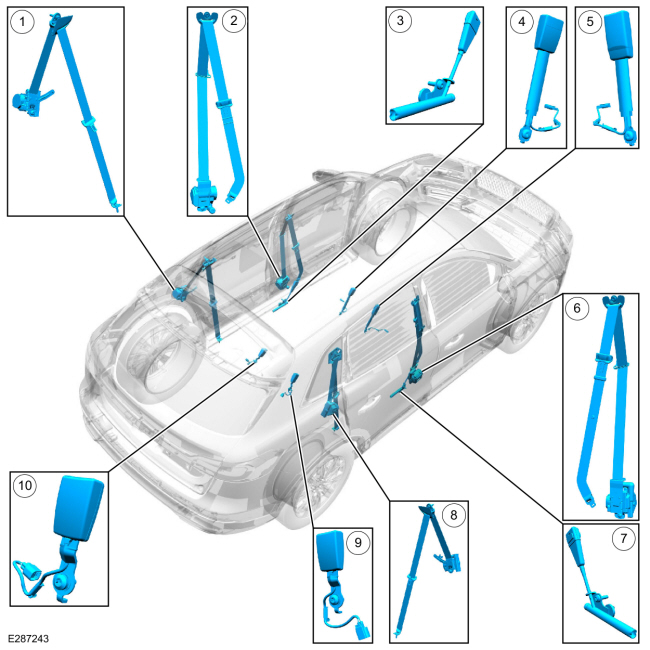

| Item | Description |
|---|---|
| 1 | Second row driver rear outer seatbelt retractor and pretensioner |
| 2 | Driver seatbelt retractor and pretensioner |
| 3 | Driver seatbelt anchor and pretensioner |
| 4 | Driver seatbelt buckle (includes buckle sensor) |
| 5 | Front passenger seatbelt buckle (includes buckle sensor and Belt Tension Sensor (BTS)) |
| 6 | Front passenger seatbelt retractor and pretensioner (includes adaptive load limiter) |
| 7 | Front passenger seatbelt anchor and pretensioner |
| 8 | Second row passenger rear outer seatbelt retractor and pretensioner |
| 9 | Second row passenger rear outer seatbelt buckle (includes buckle sensor) |
| 10 | Second row driver rear outer seatbelt buckle (includes buckle sensor) |
Airbag and Seatbelt Pretensioner Supplemental Restraint System
(SRS) - System Operation and Component Description. Description and
Operation
System Operation
System Diagram - Supplemental Restraint System (SRS)
E346569
*.sttxt {
visibility: hidden;
}
*.stcallout {
visibility: visible;
}
1
RCM
HS2-CAN
2
Passenger Seatbelt Buckle Switch
3
Passenger Front Impact Severity Sensor
4
Driver Door Side Impact Sensor
5
Driver C-Pillar Side Impact Sensor
..
