Lincoln Nautilus: Glass, Frames and Mechanisms / Driver Door Window Control Switch. Removal and Installation

Lincoln Nautilus 2018-2024 Service Manual / Body and Paint / Body and Paint / Glass, Frames and Mechanisms / Driver Door Window Control Switch. Removal and Installation

Removal

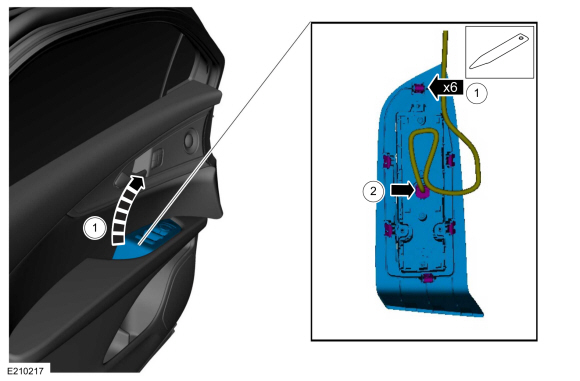

  1. Remove the driver door window control switch.
    1. Remove the driver door window control switch and the bezel assembly.
    1. Disconnect the driver door window control switch electrical connector.

  1. NOTE: This step is only necessary when installing a new component.

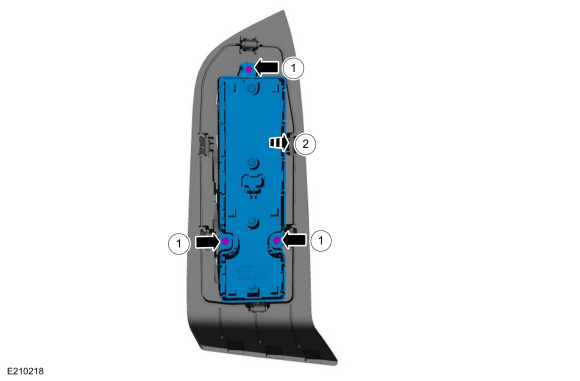

    Remove the driver door window control switch.
    1. Remove the retainers.
    1. Remove the driver door window control switch from the bezel.

Installation

  1. To install, reverse the removal procedure.
