Lincoln Nautilus: Glass, Frames and Mechanisms / Front Door Glass Top Run. Removal and Installation

Removal

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the front door window regulator and motor.
    Refer to: Front Door Window Regulator and Motor (501-11 Glass, Frames and Mechanisms, Removal and Installation).
  1. Remove the front door upper moulding.
    Refer to: Front Door Upper Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).

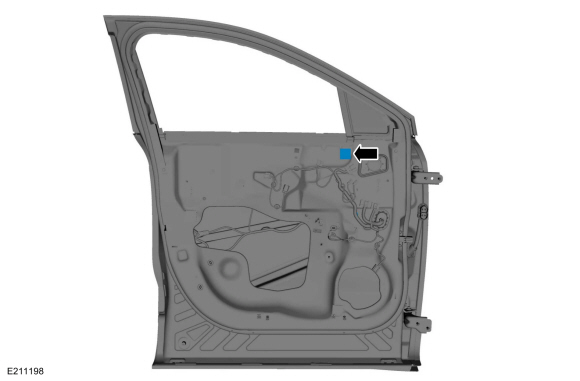

  1. Remove the access cover tape.

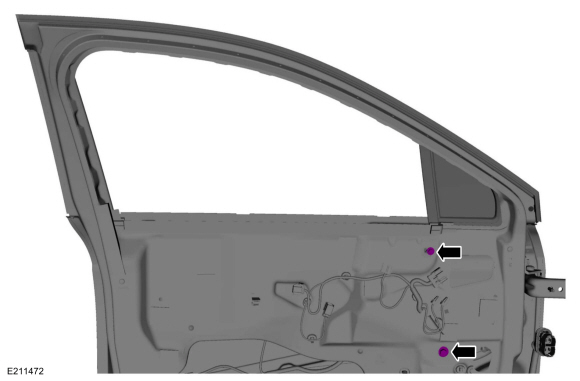

  1. Remove the front door glass top run bolts.

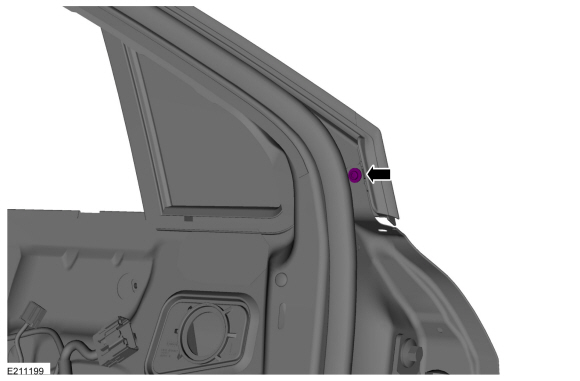

  1. Remove the front door glass top run retainer.

  1. Remove the front door glass top run retainer.
    1. Position aside the front door glass top run.

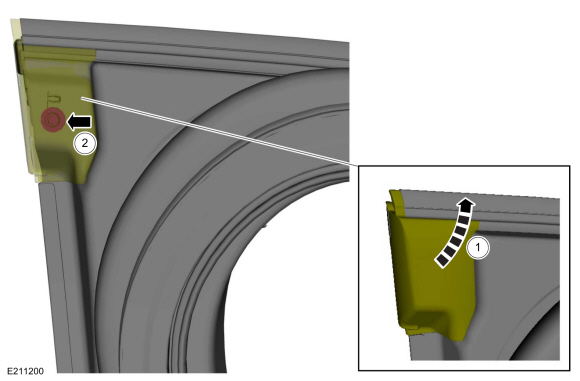

    1. NOTE: The front door glass top run shown transparent for clarity.

      Remove the front door glass top run retainer.

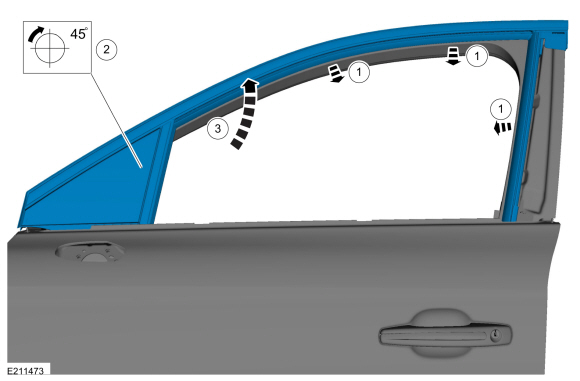

  1. Remove the front door glass top run.
    1. Release the front door glass top run from the rear and top of the front door frame.
    1. NOTE: LH side shown, the RH side should be rotated counter-clockwise.

      Rotate the front door glass top run 45 degrees clockwise.
    1. Remove the front door glass top run through the inboard side of the upper front door frame.

Installation

  1. To install, reverse the removal procedure.
  1. Carry out the power door window initialization. Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
