Lincoln Nautilus: Exterior Lighting / Light Emitting Diode (LED) Control Module. Removal and Installation

Lincoln Nautilus 2018-2023 Service Manual / Electrical / Lighting / Exterior Lighting / Light Emitting Diode (LED) Control Module. Removal and Installation


  1. Remove the headlamp assembly.
    Refer to: Headlamps (417-01 Exterior Lighting) .

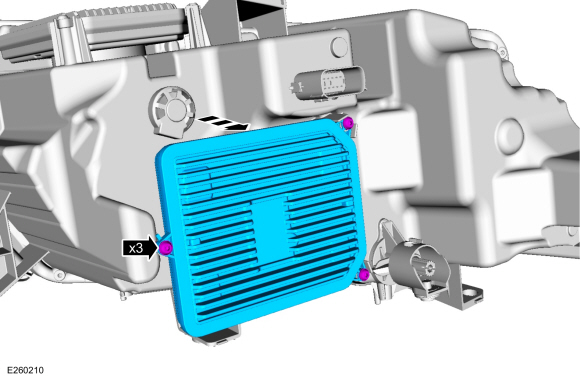

  1. Remove the screws and the LED control module.

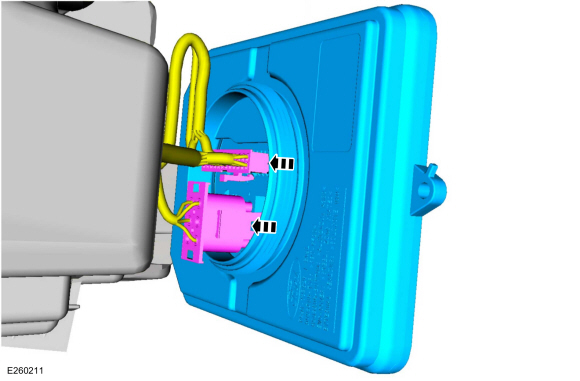

  1. Disconnect the electrical connectors.


  1. To install, reverse the removal procedure.
  1. NOTE: Carry out this step only when a LED headlamp module is being replaced.

    Using a diagnostic scan tool, carry out the LED Lamp Driver Module Initialization.
