Lincoln Nautilus: Steering Wheel and Column Electrical Components / Steering Column Control Module (SCCM). Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE:
This step is only necessary when installing a new component.
NOTE:
The PMI process must begin with the current SCCM installed. If the
current SCCM does not respond to the diagnostic scan tool, the tool may
prompt for As-Built Data as part of the repair.
Using a diagnostic scan tool, begin the PMI process for the SCCM following the on-screen instructions.
-
Remove the steering wheel.
Refer to: Steering Wheel (211-04 Steering Column, Removal and Installation).
-
Remove the steering column shrouds.
Refer to: Steering Column Shrouds (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

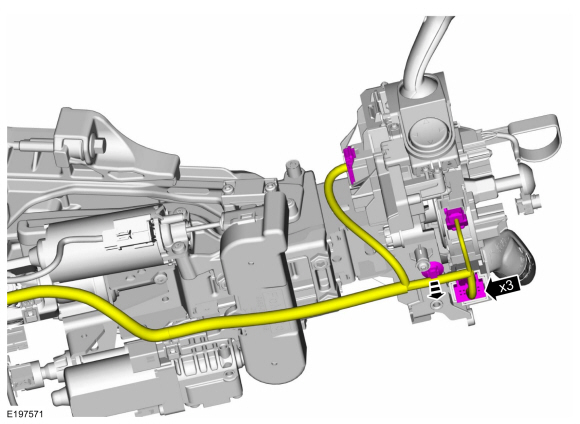

Detach the retainer and disconnect the SCCM electrical connector(s).
-

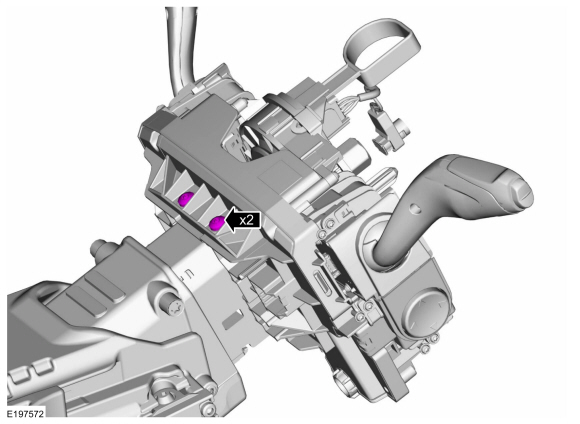

Remove the SCCM screws.
Torque:
27 lb.in (3 Nm)
-
-
Release the SCCM retaining clip.
-
Remove the SCCM .
Installation
-
To install, reverse the removal procedure.
-
NOTE:
This step is only necessary when installing a new component.
Using a diagnostic scan tool, complete the PMI process for the SCCM following the on-screen instructions.
