Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. NOTE: This step is only necessary when installing a new component.

    NOTE: The PMI process must begin with the current SCCM installed. If the current SCCM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

    Using a diagnostic scan tool, begin the PMI process for the SCCM following the on-screen instructions.
  1. Remove the steering wheel.
    Refer to: Steering Wheel - Vehicles With: Adaptive Steering (211-04 Steering Column, Removal and Installation).

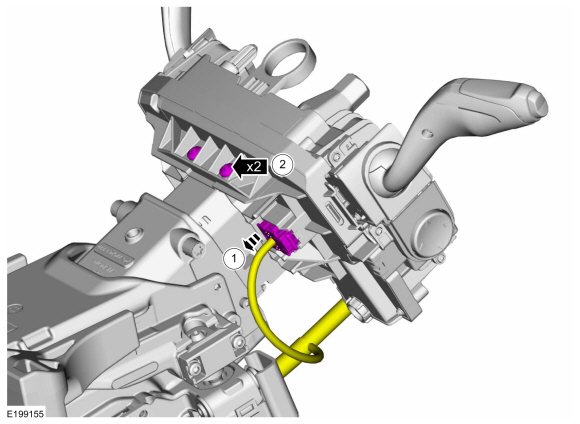

    1. Disconnect the SCCM electrical connector.
    1. Remove the SCCM screws.
      Torque: 27 lb.in (3 Nm)

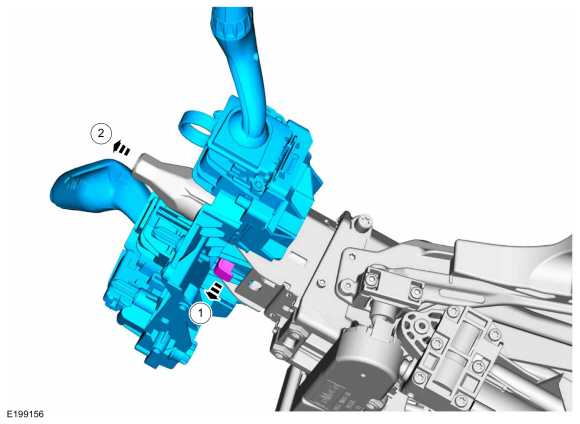

    1. Release the SCCM retaining clip.
    1. Remove the SCCM .

Installation

  1. To install, reverse the removal procedure.
  1. NOTE: This step is only necessary when installing a new component.

    Using a diagnostic scan tool, complete the PMI process for the SCCM following the on-screen instructions.
