Lincoln Nautilus: Exterior Lighting / Adaptive Front Lighting Module. Removal and Installation

Lincoln Nautilus 2018-2024 Service Manual / Electrical / Lighting / Exterior Lighting / Adaptive Front Lighting Module. Removal and Installation

Removal

  1. Remove the headlamp assembly.
    Refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation).

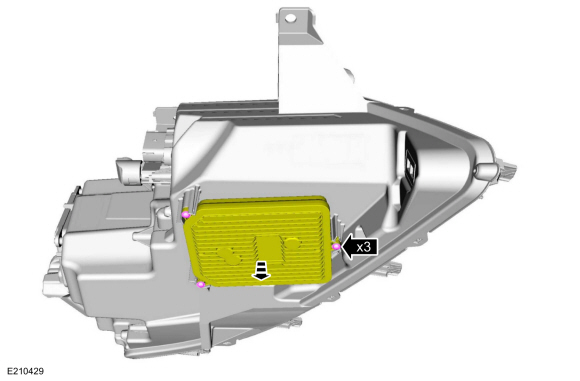

  1. Remove the screws and position the adaptive front lighting module to access the connectors.
  1. Disconnect the electrical connectors and remove the adaptive front lighting module.

Installation

  1. To install, reverse the removal procedure.
  1. NOTE: Carry out this step only when an adaptive front lighting module is being replaced.

    Using the VCM and IDS software, connect the diagnostic scan tool and execute the “LIN New Module Initialization” routine using the following path: Electrical> Service Functions> LIN New Module Initialization. Follow the diagnostic scan tool directions.
  1. NOTE: Carry out this step only when an adaptive front lighting module is being replaced.

    Using the VCM and IDS software, connect the diagnostic scan tool and execute the “LED Lamp Driver Module Initialization” routine using the following path: Electrical> Service Functions> LED Lamp Driver Module Initialization. Follow the diagnostic scan tool directions.
