Lincoln Nautilus: Wipers and Washers / Front Parking Aid Camera Washer Jet. Removal and Installation

Lincoln Nautilus 2018-2023 Service Manual / Body and Paint / Body and Paint / Wipers and Washers / Front Parking Aid Camera Washer Jet. Removal and Installation

Removal

  1. Remove the front parking aid camera.
    Refer to: Front Parking Aid Camera (413-13B) .

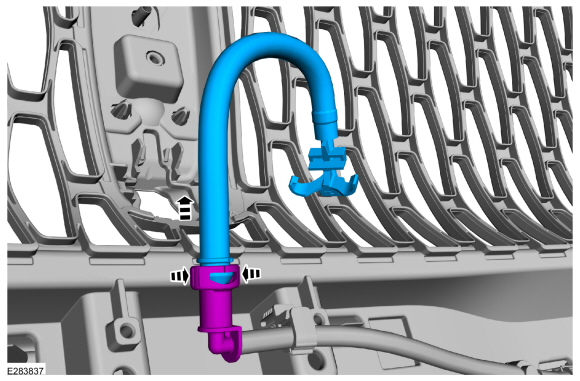

  1. Disconnect the hose and remove the front parking aid camera washer jet.

Installation

  1. To install, reverse the removal procedure.
