Lincoln Nautilus: Front Seats / Front Seat Cushion Blower Motor. Removal and Installation
Removal
-
Remove the front seat cushion cover and foam as an assembly.
Refer to: Front Seat Cushion Cover (501-10A Front Seats, Removal and Installation).
Refer to: Front Seat Backrest Cover - Vehicles With: Black Label Trim/Multi-Contour Seats (501-10A Front Seats, Removal and Installation).
-

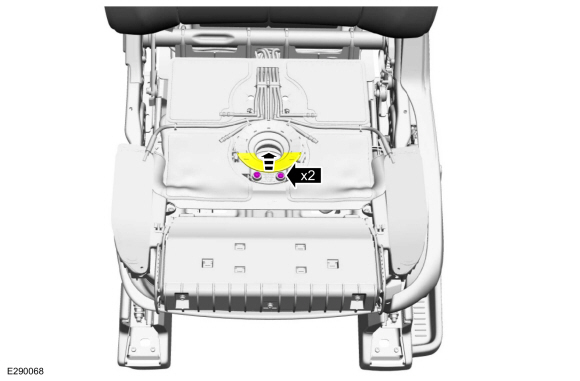

Lift the edge of the front seat cushion blower motor air duct and remove the screws.
 |
-

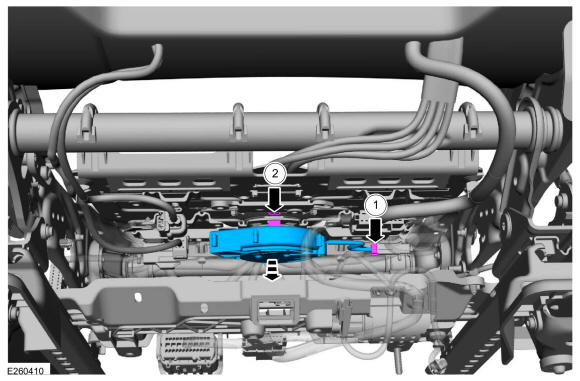

Remove the front seat cushion blower motor.
-
Disconnect the electrical connector.
-
Release the retainer.
-
Disconnect the electrical connector.
 |
Installation
-
To install, reverse the removal procedure.
