Lincoln Nautilus: Glass, Frames and Mechanisms / Rear Door Window Glass. Removal and Installation
Removal
NOTE:
LH side shown, RH side similar.
-
Remove the rear door trim panel.
Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

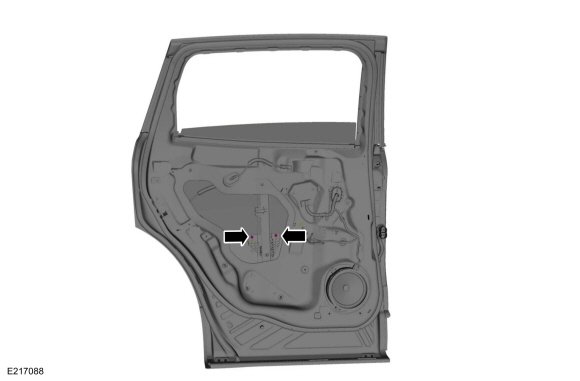

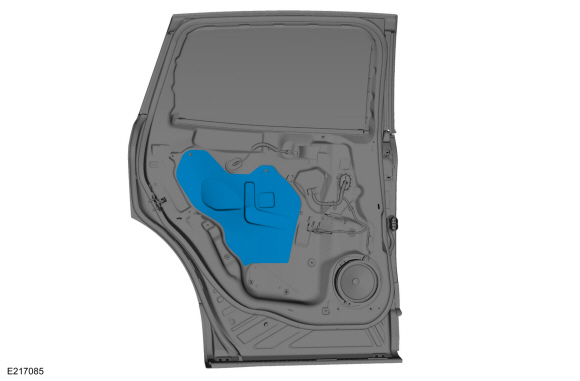

Remove the rear door watershield.
-

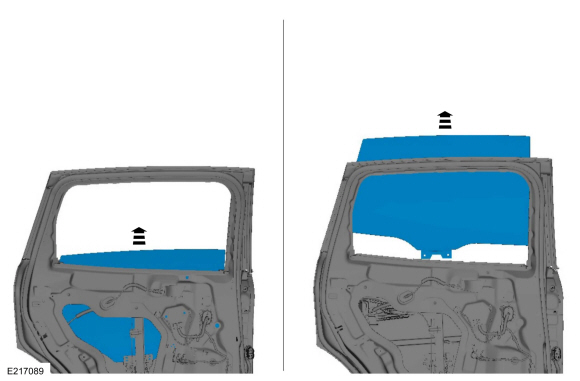

Lower the rear window glass to full down position.
-

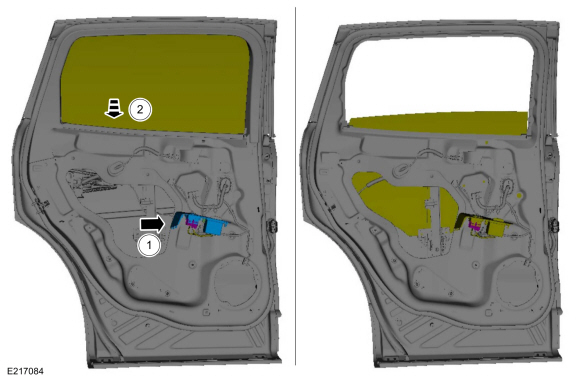

Install the rear door window control switch.
-
Lower the rear window glass to full down position.
-
NOTE:
The rear door glass is shown removed for clarity.

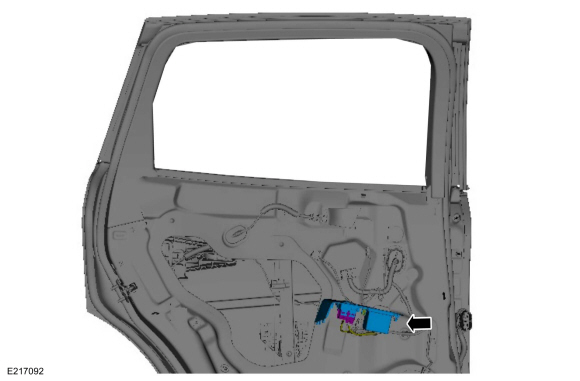

Remove the rear door window control switch.
-
NOTE:
The rear door glass is shown removed for clarity.

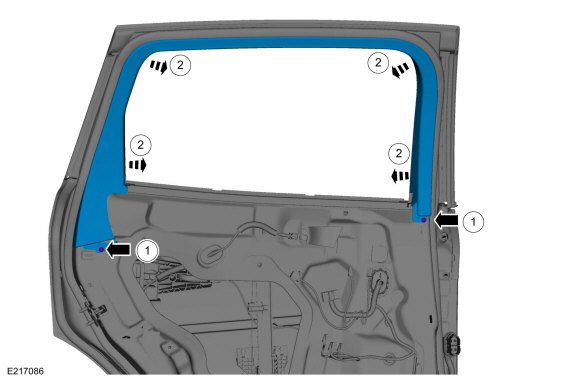

Remove the rear door upper trim.
-
Remove the retainers from the rear door upper trim.
Torque:
9 lb.in (1 Nm)
-
Remove the rear door upper trim.
-
NOTE:
The rear door glass is shown removed for clarity.

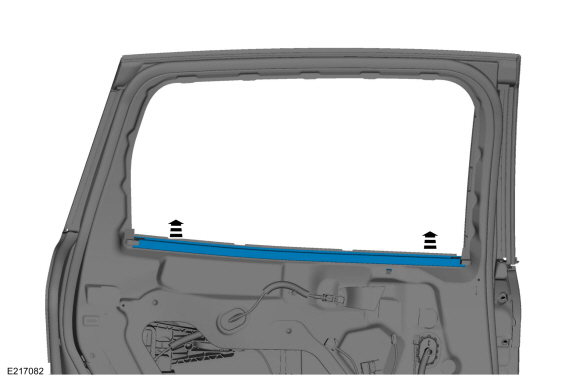

Remove the inner belt moulding.
-
Remove the aft rear door upper moulding.
Refer to: Rear Door Upper Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).
-
Remove the retainers from the rear door window glass.
-
Remove the rear door window glass.
Installation
-
To install, reverse the removal procedure.
-
If the door is equipped with one touch up/down, carry out the power door window initialization.
Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
Removal
NOTE:
LH side shown, RH side similar.
Remove the rear door window control switch.
Remove the rear door window control switch and the bezel assembly...
Removal
NOTE:
LH side shown, RH side similar.
NOTE:
Removal steps in this procedure may contain installation details.
Remove the rear door trim panel...
